ZJ70LDB Oil Rig 2000hp used oil rig

Name :

ZJ70LDB Oil Rig 2000hp used oil rig
ID :
Price :

0
Specifications :

Description

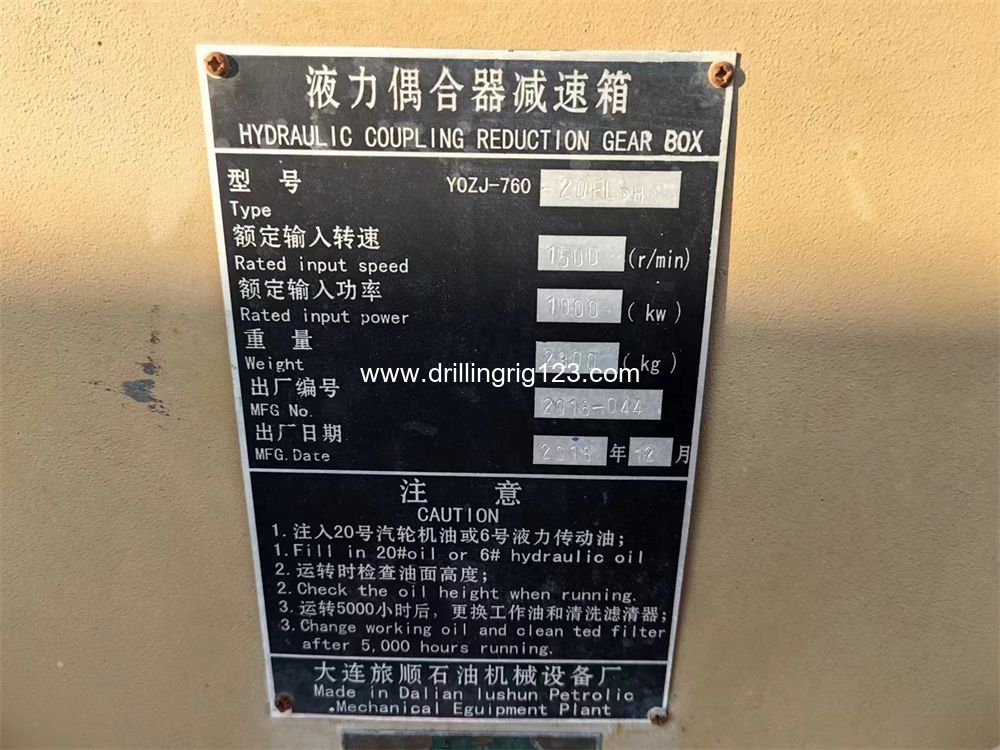

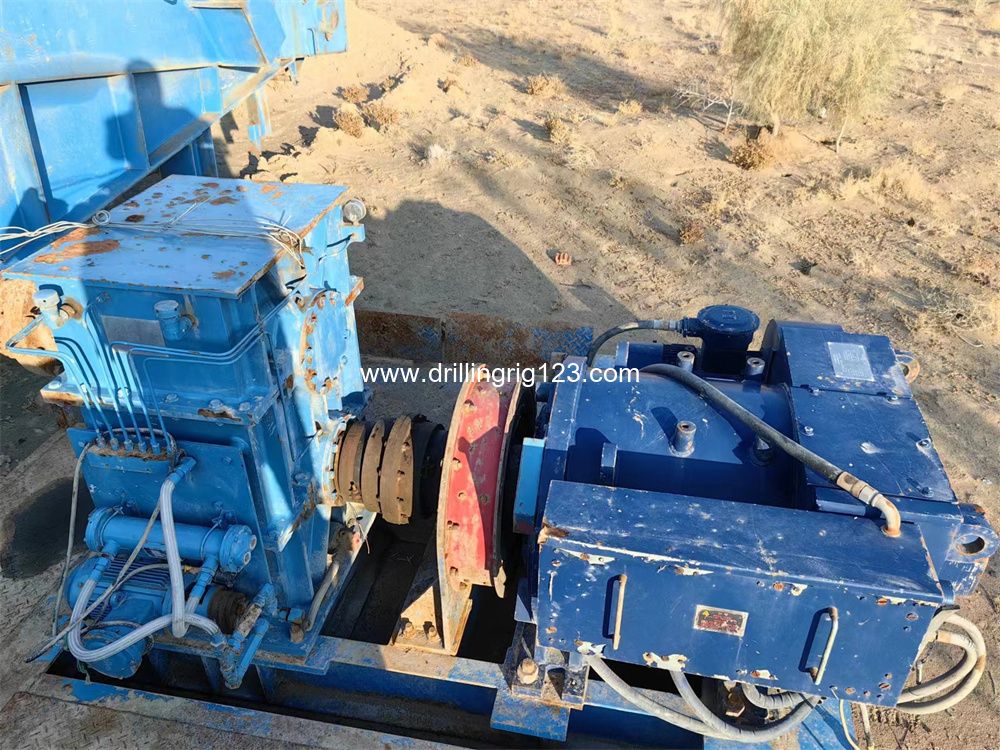

The drawworks and mud pumps are driven by “diesel engine + coupling transmission + chain compound” while rotary table is driven independently by AC variable frequency motor or DC motor to obtain smooth speed and torque limited so that the drilling performance is improve.
● Rig floor is in two level “front high rear lower”. Power and transmission system are installed on the rear low level.
● Drawworks is inner speed change. Speed shift adjustment and change is easily available by remote pneumatic control.
● Main brake is hydraulic disc brake or band brake and auxiliary brake is eddy current brake.

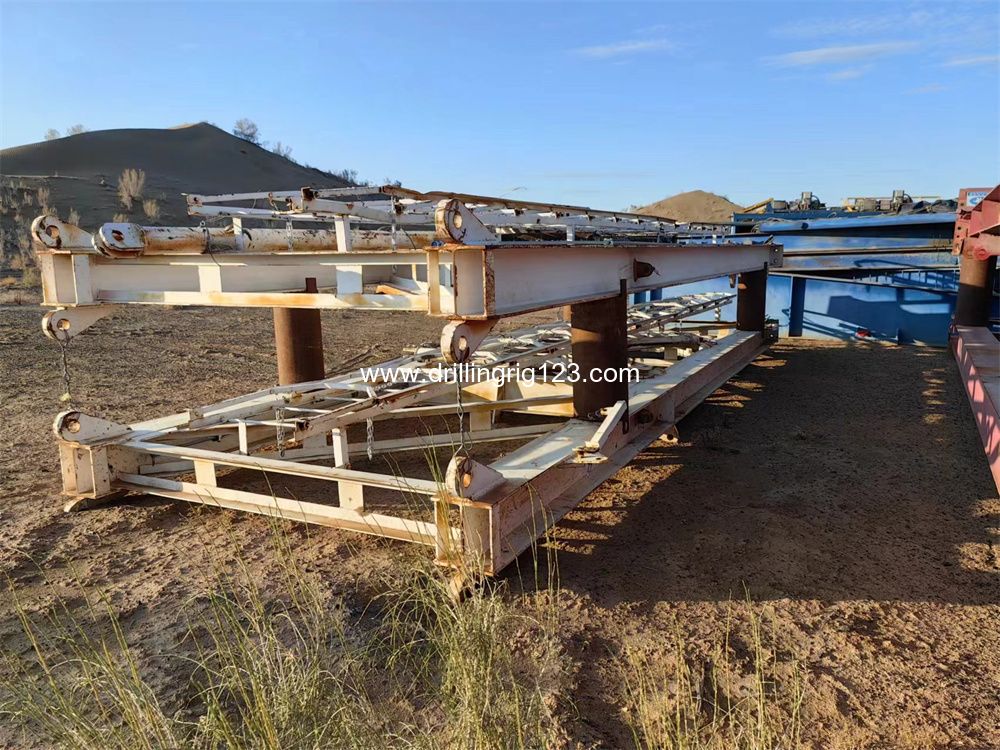

● Box or front level with swing lift and rear level with box type substructure is available.
● Module design is provided for reasonable arrangement, power compensation and high use ratio. Ample space on rig floor is available for convenient operation.
● Compound can be used to drive the energy saving generator and automatic air compressor.

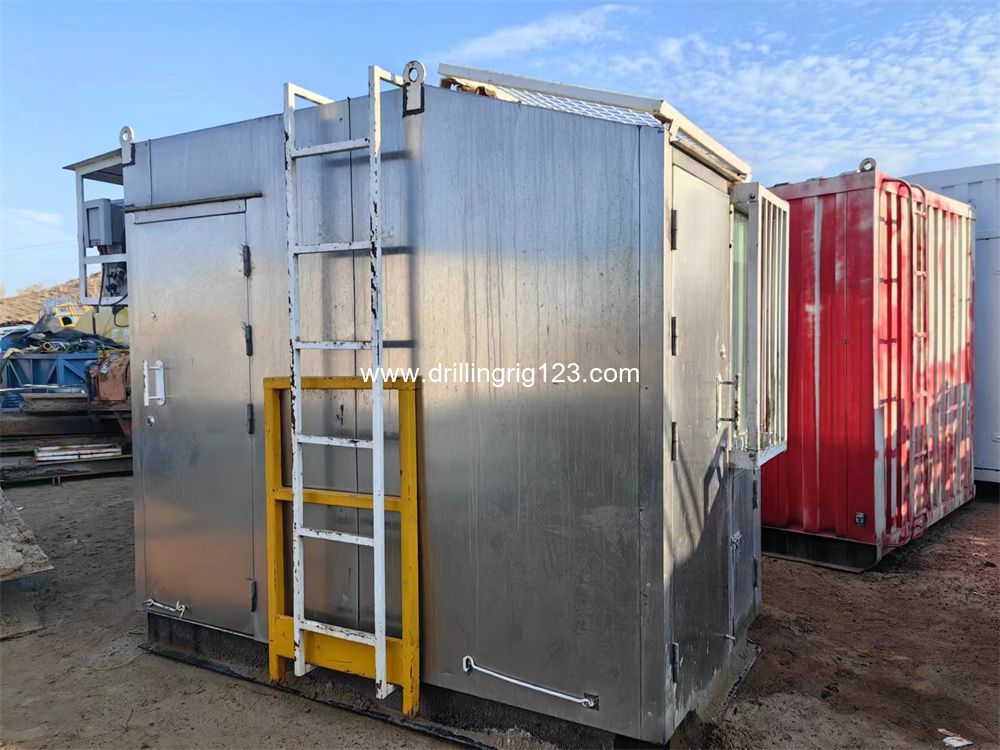

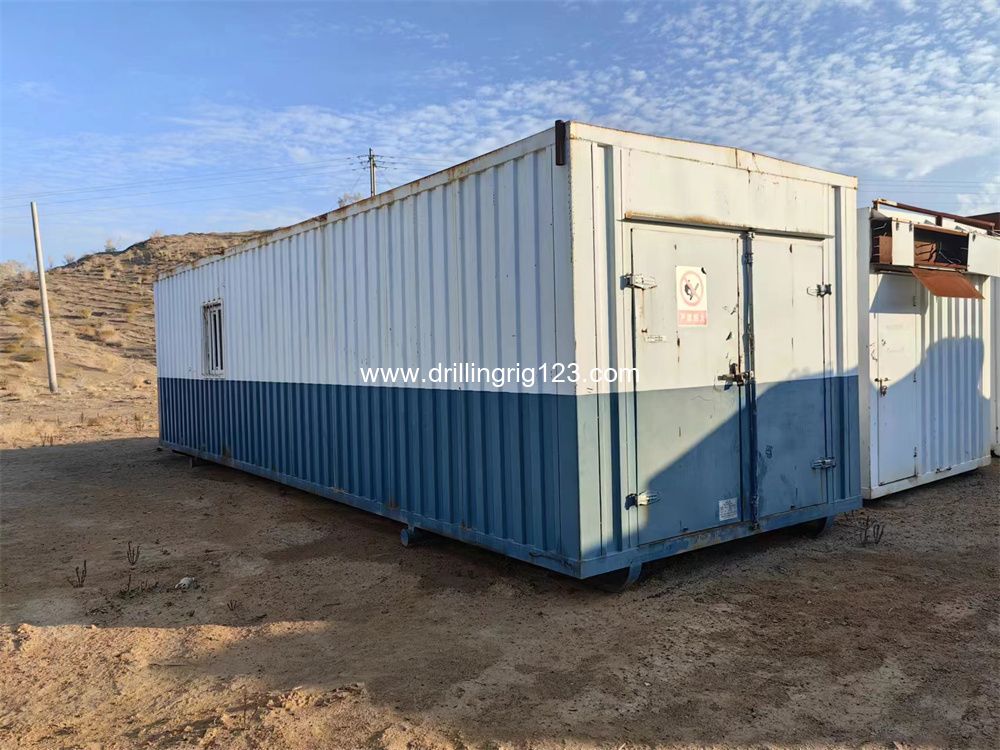

● Independent driller cabin is on the user’s requirements. To realize intelligent control of pneumatic, electric, hydraulic and instrument system so that driller completes the total operations in the cabin for better working conditions and lessening working strength. Logic control, supervision and maintenance during complete drilling operations are available by PLC process. The drilling data can be stored printed and remote transmitted.
● Top drive drilling system could be equipped.
● Integrated skid rail may be provided to meet requirement for cluster well drilling.

钻机型号 Drilling rig model		ZJ70/4500LDB
名字钻深范围 m Nominal drilling depth, m	114mm(4 1/2″)钻杆Drill pipe	4500-7000
名字钻深范围 m Nominal drilling depth, m	127mm(5″)钻杆Drill pipe	4000-6000
最大钩载 KN Max. hook load, KN		4500
钩速 m/s Hook speed, m/s		0.21-1.36/0.25-1.91
游动系统绳数 Traveling line		12
钻井钢丝绳直径 mm Drill line diameter, mm		38
最大快绳拉力 KN Max. pull of fast line, KN		485

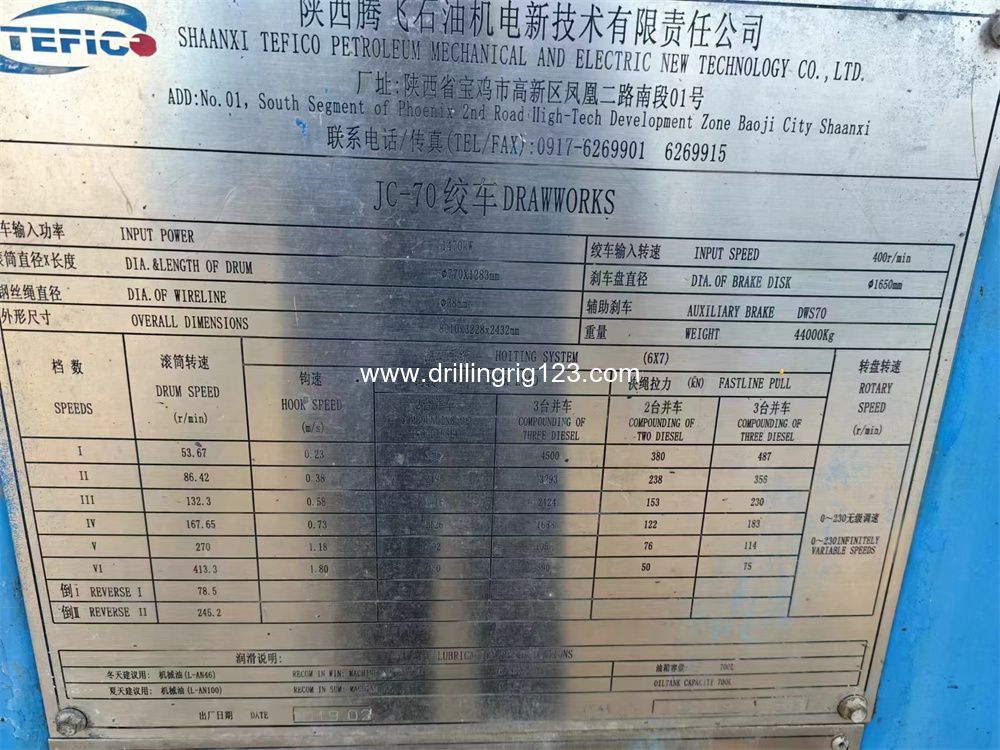

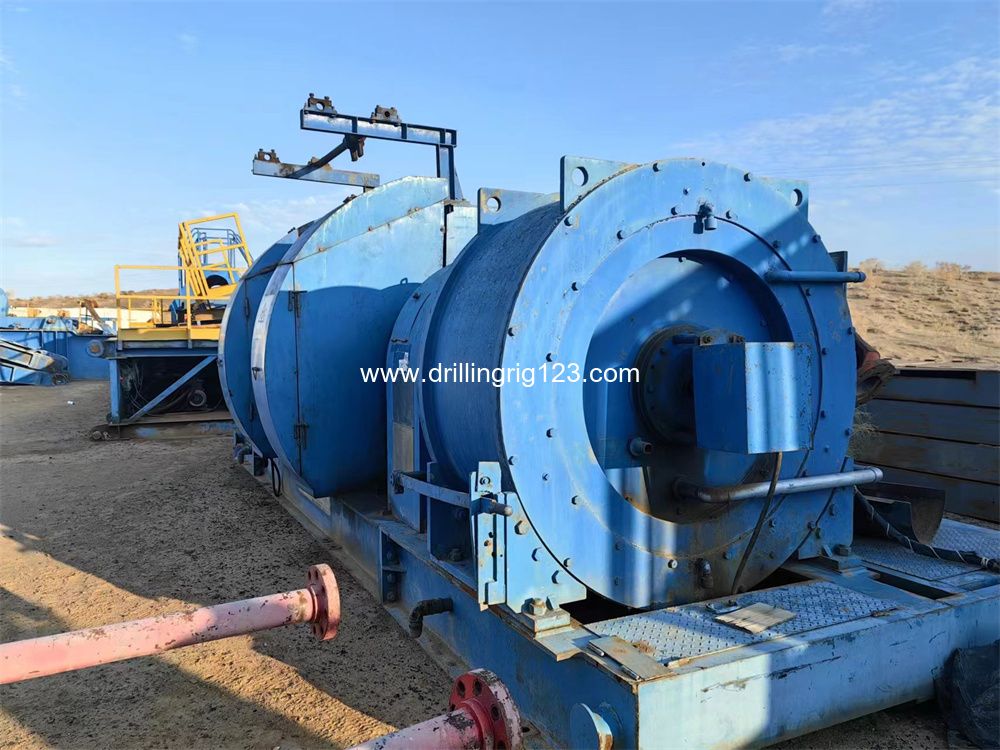

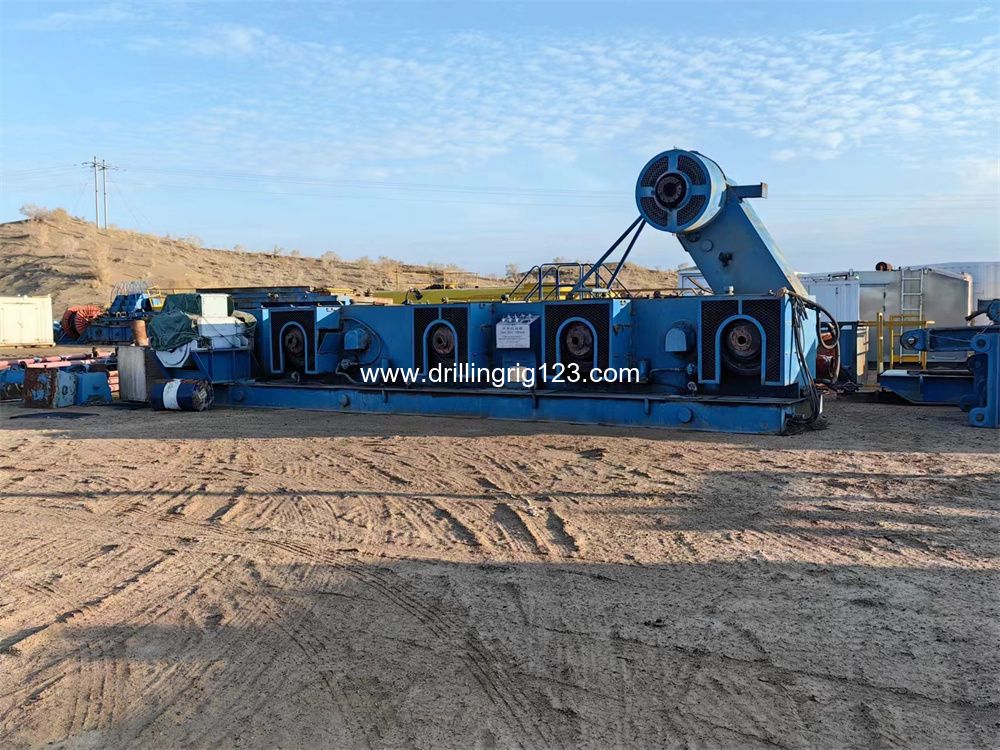

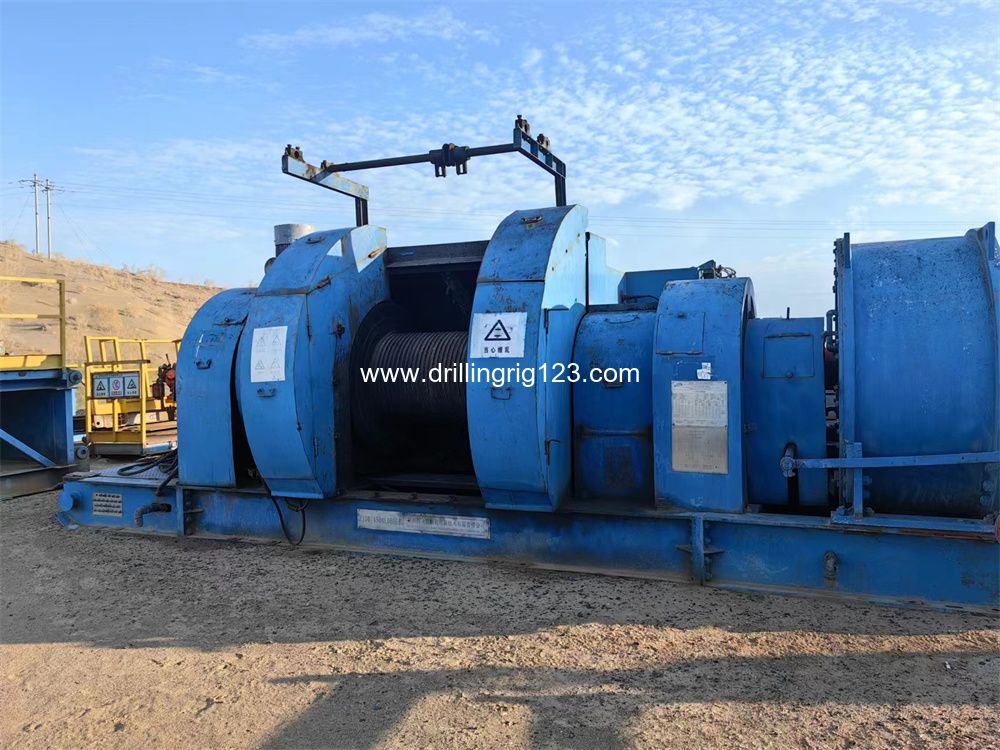

绞车 Drawworks	型号 Model	JC70B
	额定功率 KW Rated Power KW	1470
	档数 Speed	6F(4F)+2R
主刹车 Main brake		液压盘式刹车 Hydraulic disc brake
辅助刹车 Auxiliary brake		电磁涡流刹车 Eddy brake
天车 Crown brake		TC450
游车 Traveling block		YC450
游动系统滑轮外径 mm Sheave OD of hoisting system, mm		1524
大钩 Hook		DG450
水龙头 Swivel	型号 Model	SL450
水龙头 Swivel	中心管通径 mm Stem dia, mm	75

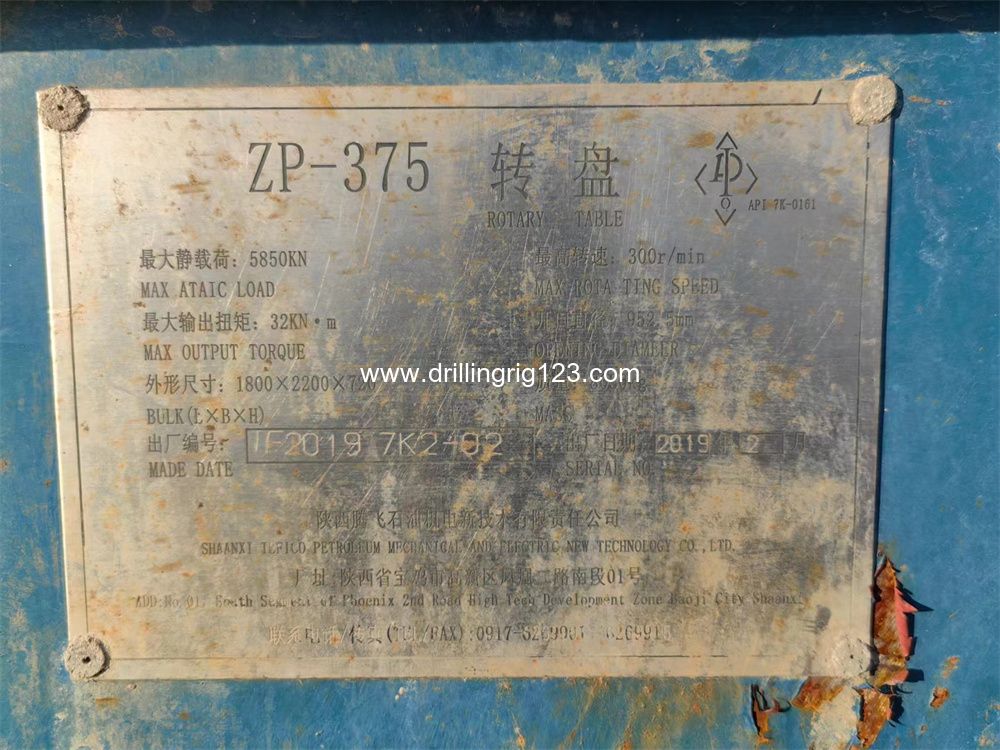

转盘 Rotary table	开口直径 mm Table opening mm	952.5
	档数 Speed	I或II，无级调速 Ⅰor Ⅱ, smooth change
	驱动方式 Drive mode	变频电机 VFD motor

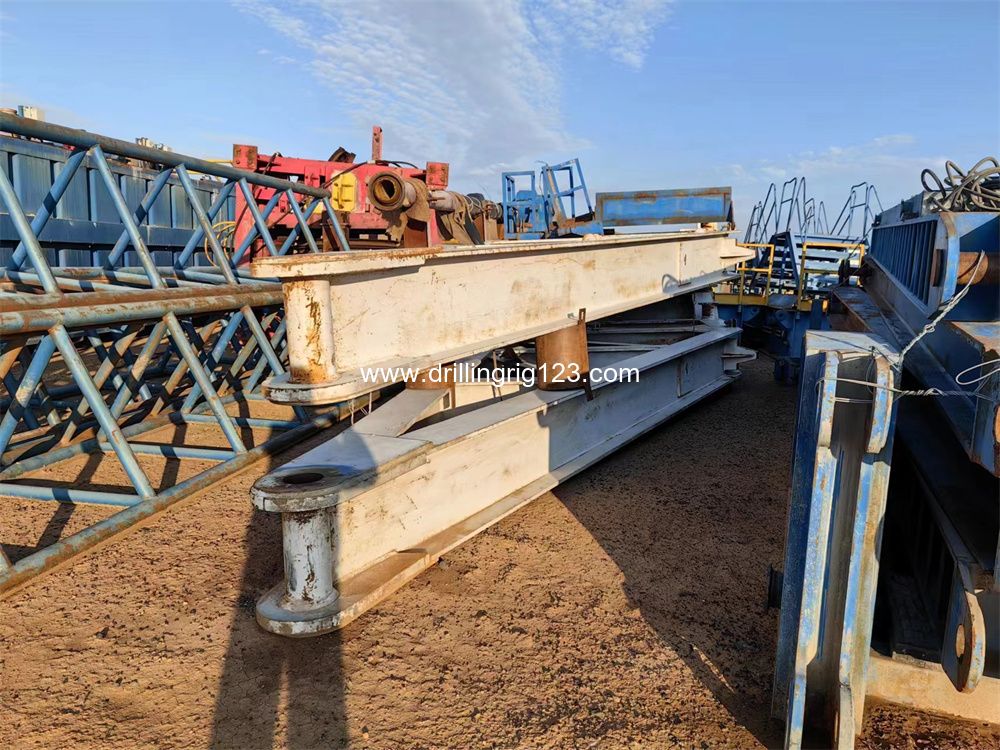

井架 Mast	型式 Type	K
	高度 m Height, m	45
	最大载荷 KN Max. load, KN	4500
底座 Sub structure	型式 Type	前台旋升后台块装 Front level, swing lift; rear level, box
	钻台高度 m Floor height, m	前台Front 10.5, 后台rear 0.8
	净空高度 m Clear height, m	7.4/8.9

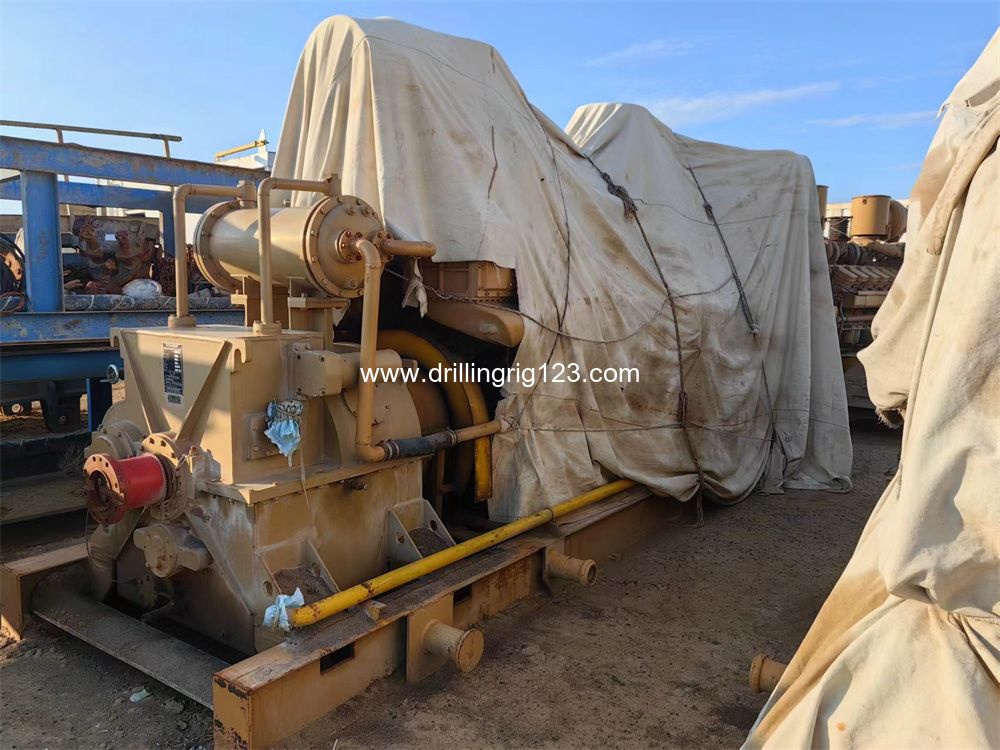

泥浆泵 Mud pump	型号×台数 Model × number	F-1600×2
泥浆泵 Mud pump	驱动方式 Drive mode	并车联合驱动 Compound drive
转盘电传动方式 Rotary electric drive mode		一对一控制 AC-DC-AC or AC-SCR-DC, one for one control

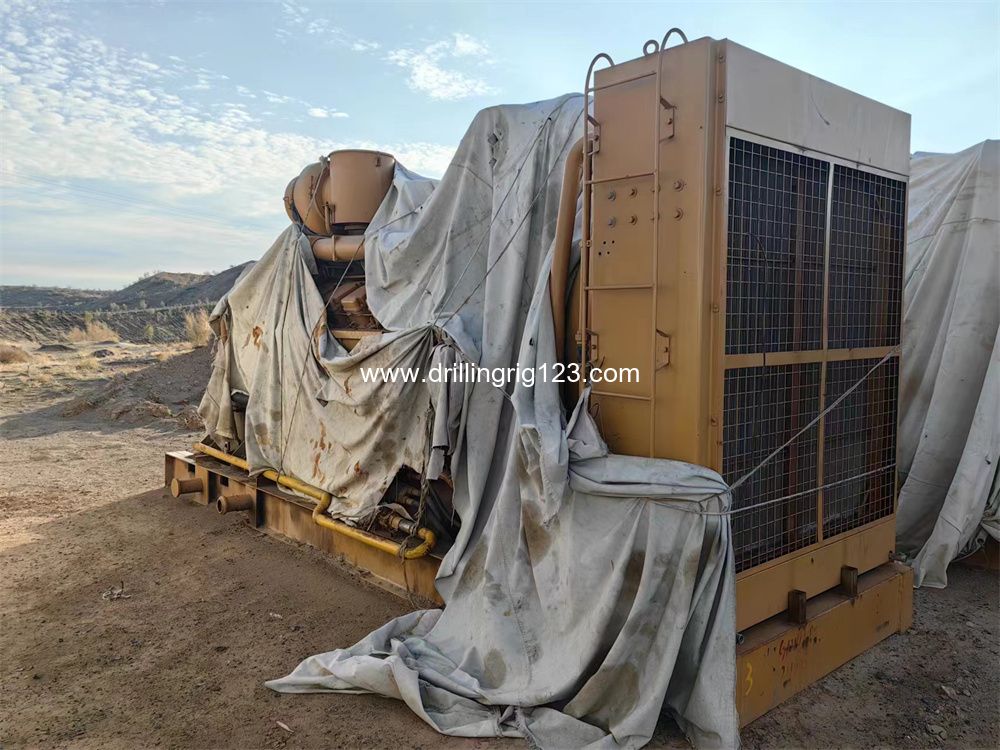

装机功率 KW Total power, KW		3×1000/4×810

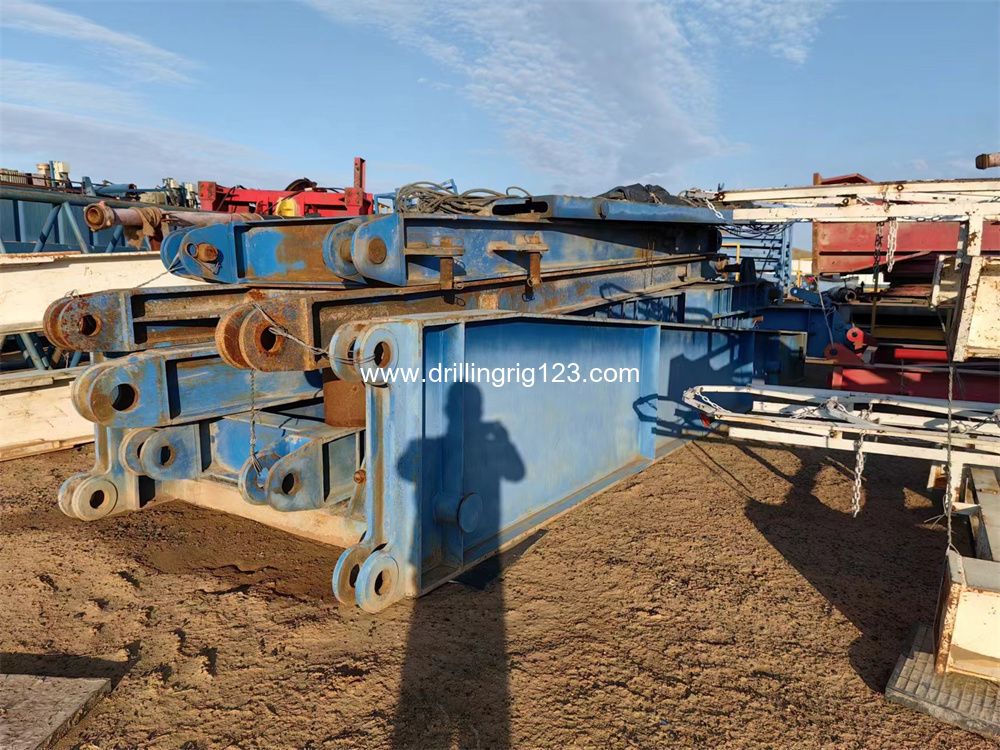

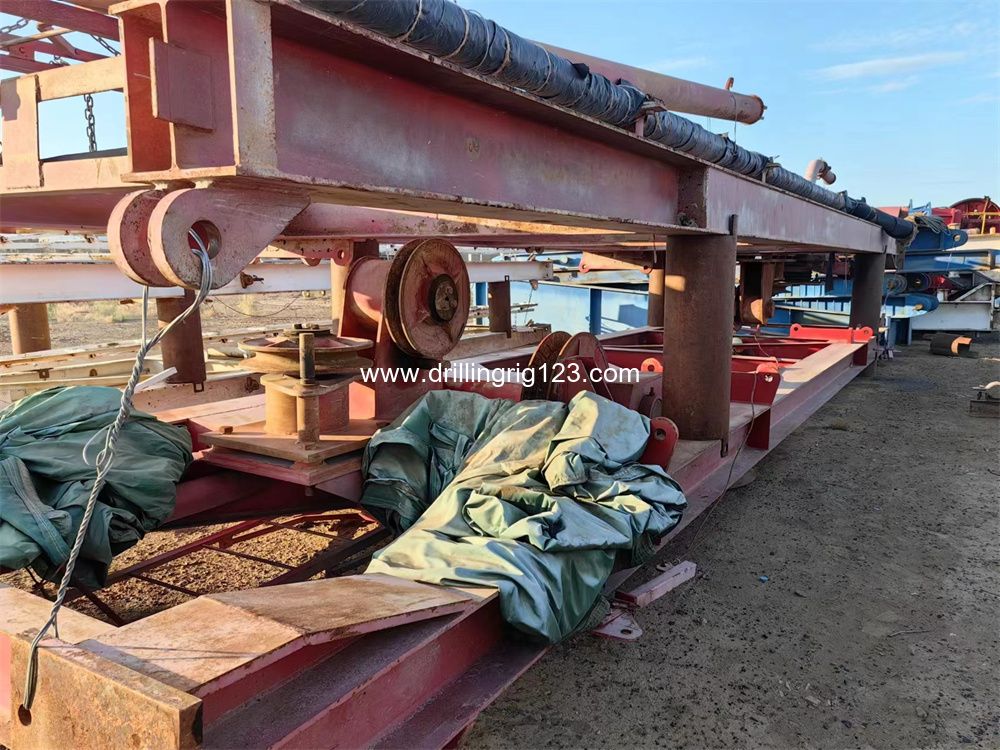

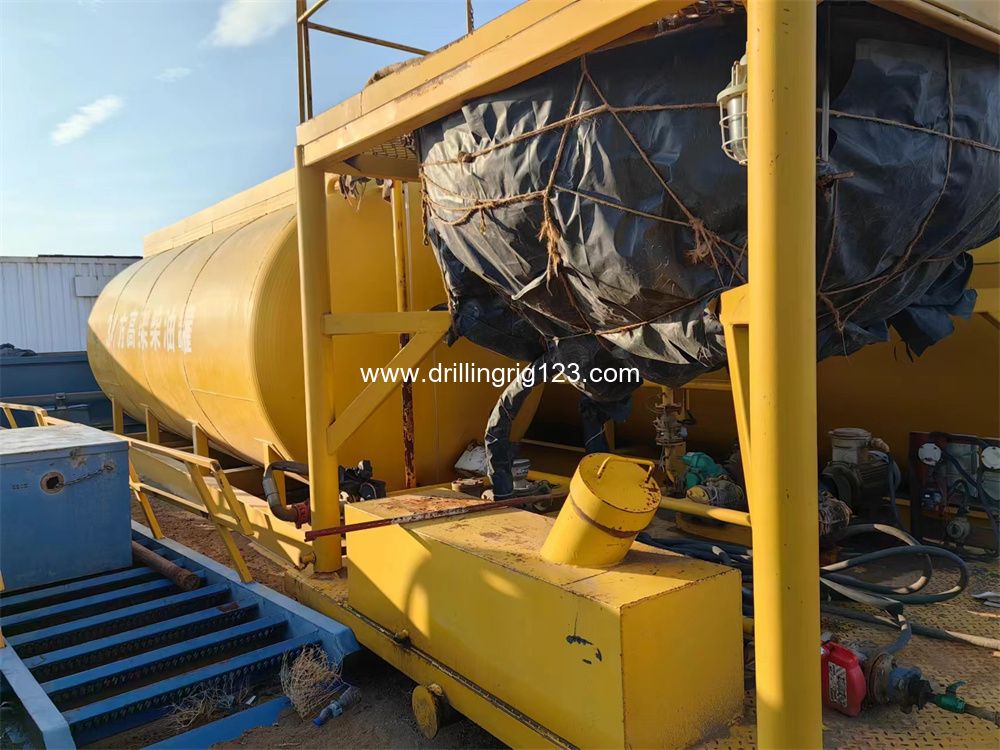

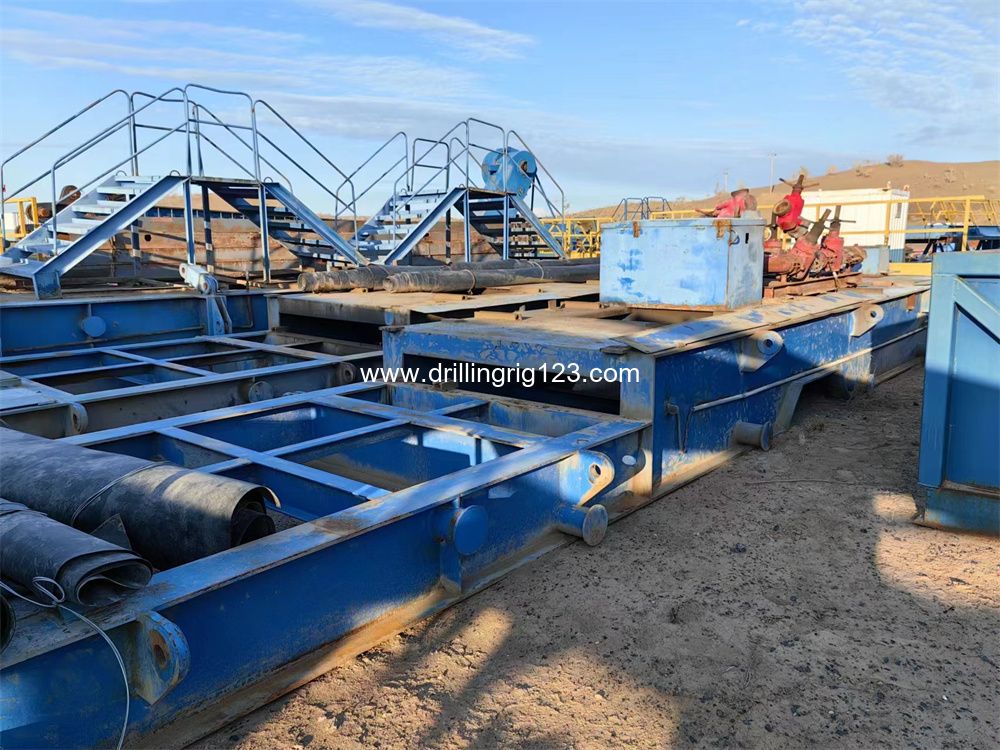

Images
