SMJ2000m Truck Mounted Hydraulic Drilling Rig

Name :

SMJ2000m Truck Mounted Hydraulic Drilling Rig
ID :
Price :

0
Specifications :

2000m

Description

Truck-mounted Drilling Rig

SMJ series truck-mounted drilling rig is a kind of machine which mount the hydraulic head driven rotary head drilling rig to a truck chassis. It can be compressed air drilling, foam drilling or mud drilling. It is with the characteristics such as good mobility, high efficiency, good quality, low pollution, etc. It can be used to drill holes for gas extraction, shallow oil or hydro-construction as well as mine rescue drilling construction.

1) High drilling efficiency, the average drilling speed is up to 20m / h

2) It can be used to drill vertical wells, horizontal wells, cluster wells, and branch wells.

3) Good mobility, can reach the working site quickly.

4) Low requirement for the working conditions, can start operation quickly.

5) Can drill with compressed air, foam, or mud pump

6) Big hoisting capacity, it is up to 1000kN, the max. torque is up to 25kN.m.

7) The rotary head can tilt, can change the drilling rod easily.

Images

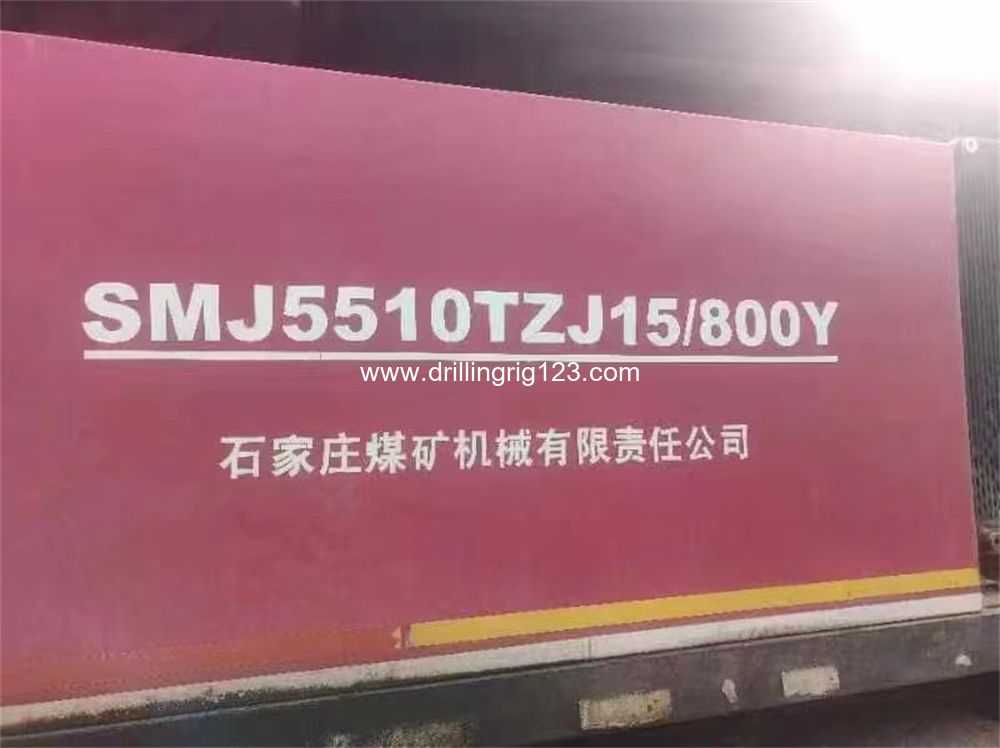

SMJ5510TZJ15/800Y Model

Drive 10x6

16 tyres

445/65R22.5 12R22.5

15kNm/150rpm

Top Drive travel volume 15m

Drilling Capacity 114mm pipe: 2000m

Lift 800KN

Push force 180KN

Winch lift 38KN

Power 522Kw

Dimension of whole rig 13.7x2.85.4.19m

Weight 51130KG

Mfg. SMJ

Characters: High drilling efficiency, up to 20m/h

Can meet the construction requirements of vertical wells and horizontal wells cluster wells

Drilling rig has strong maneuverability

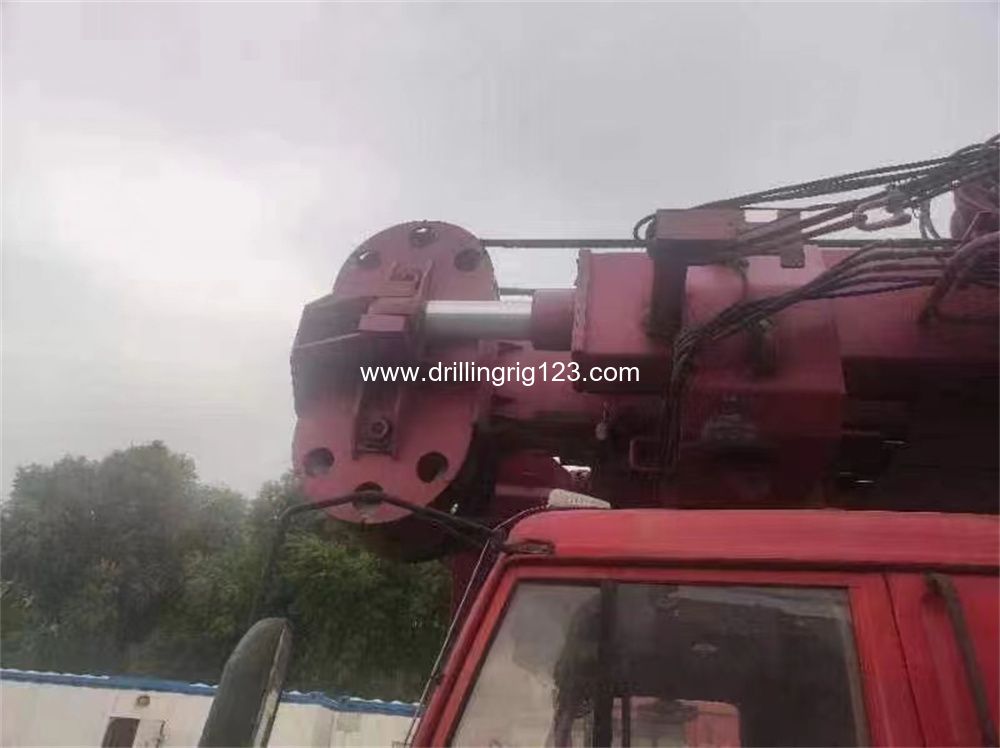

The power head can be tilted
