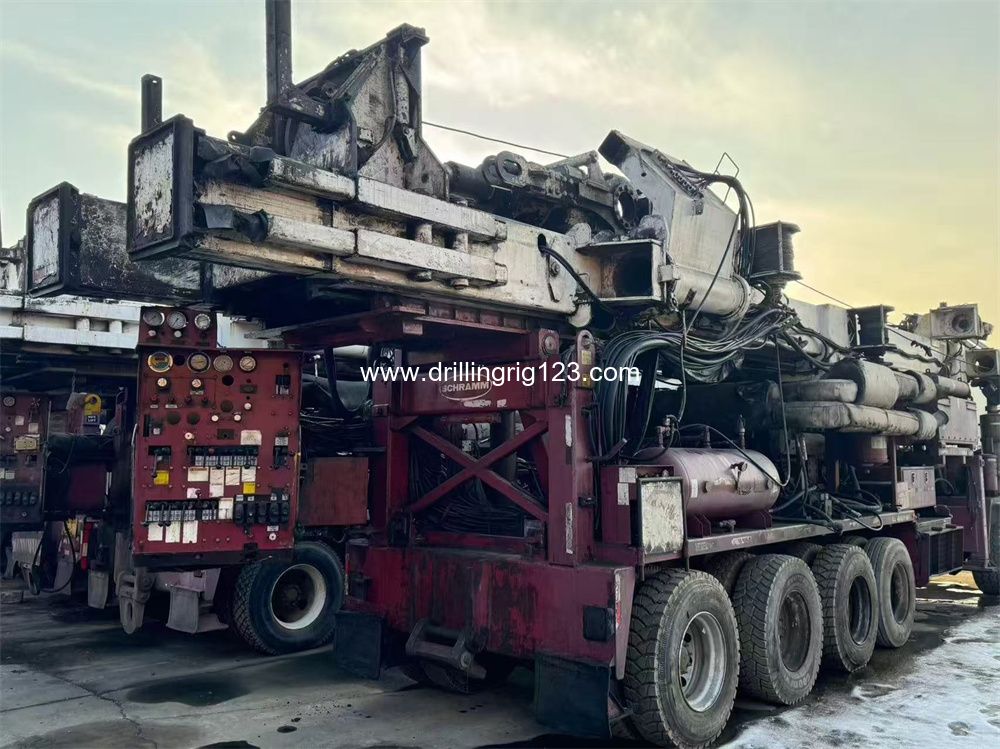

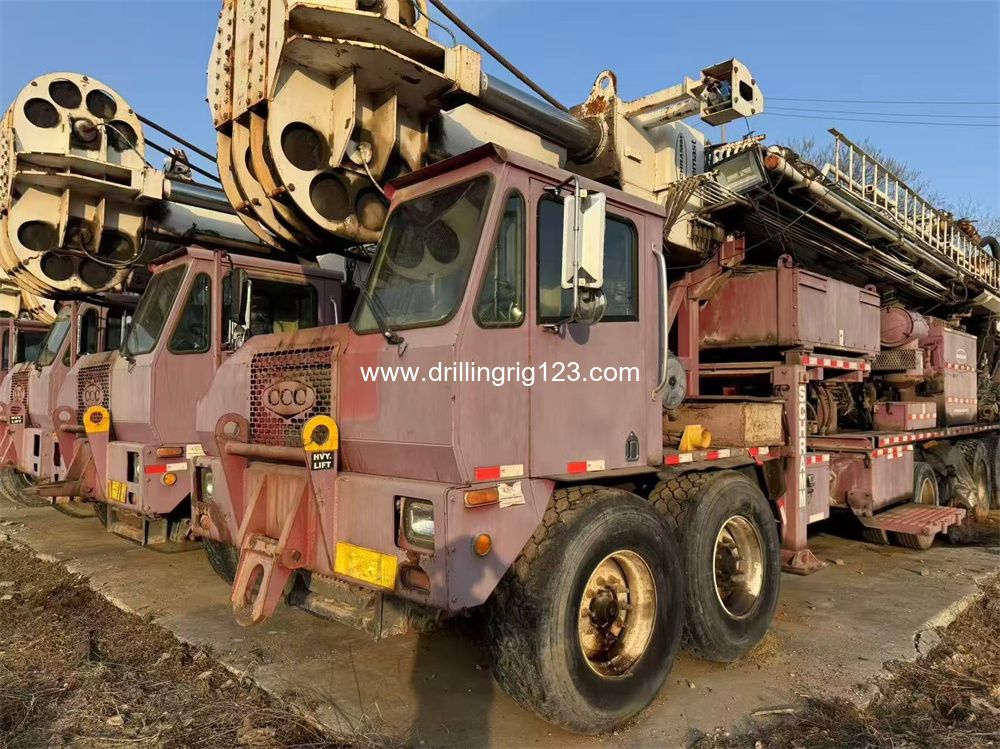

Schramm T200XD Deep Well Drilling Rig

Name :

Schramm T200XD Deep Well Drilling Rig
ID :

qx20251225001
Price :

contact for price
Specifications :

T200XD

Description

2008/2010 manufactured.

T200XD

SPECIFICATIONS

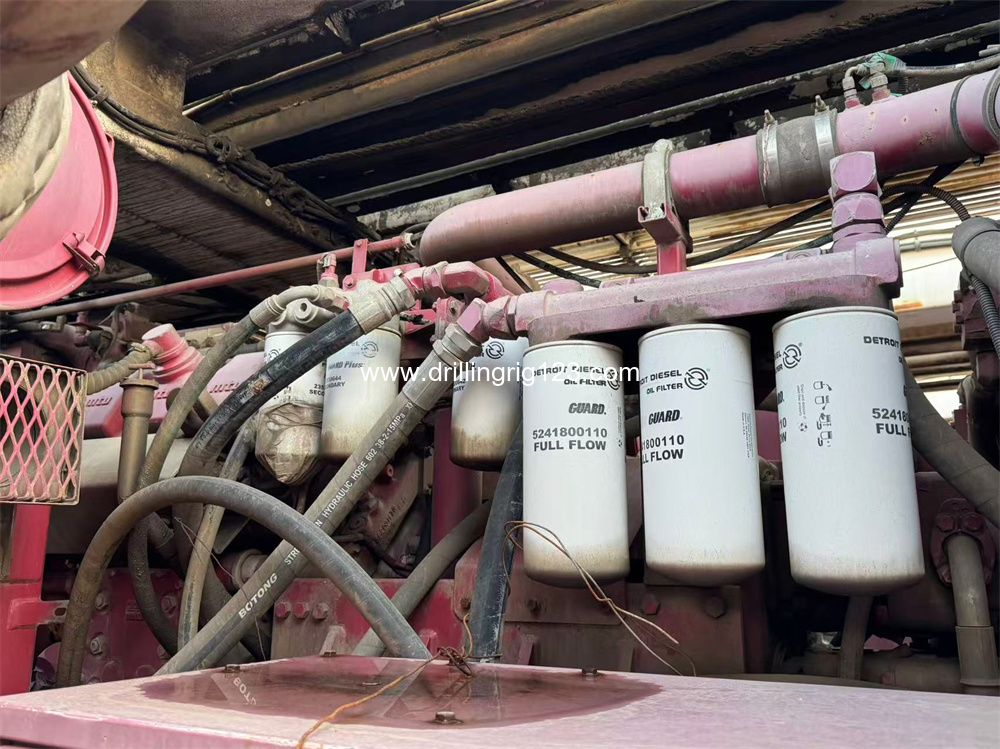

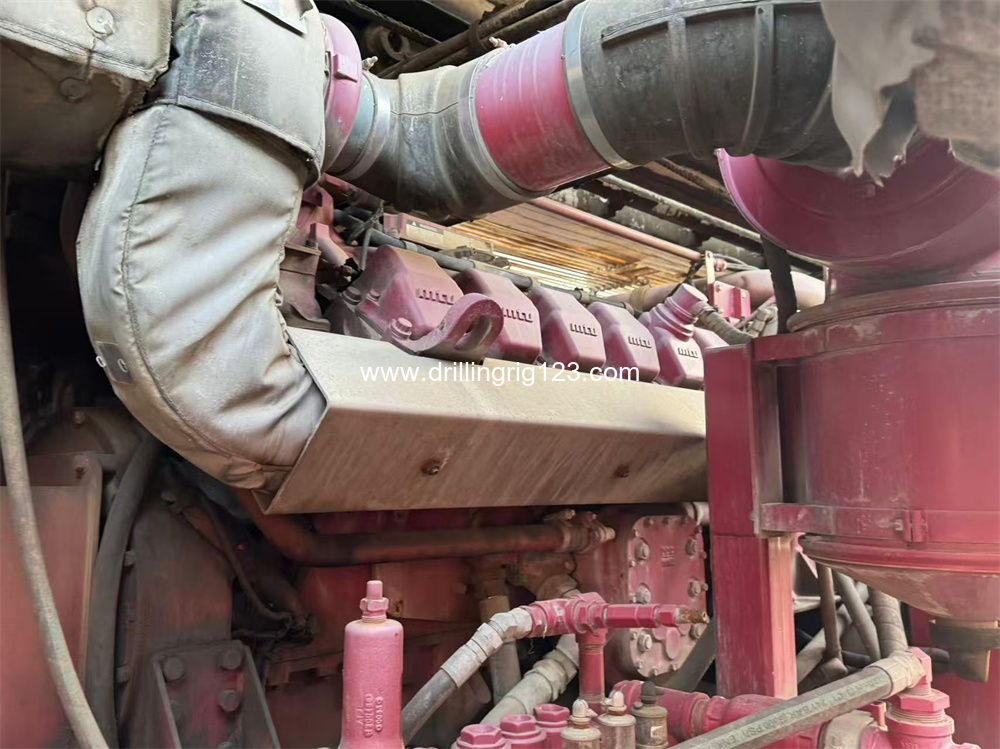

DECK ENGINE

Detroit Diesel DDC/MTU 12V-2000TA DDEC.760 bhp(567 kw)@1800rpm

.2x110 gallon(4151)fuel tanks.Air or electric start available COOLING

.Two core,side by side heat exchanger with variable speed cooling fan

.130F(54C) ambient design temperature

OUTRIGGERS

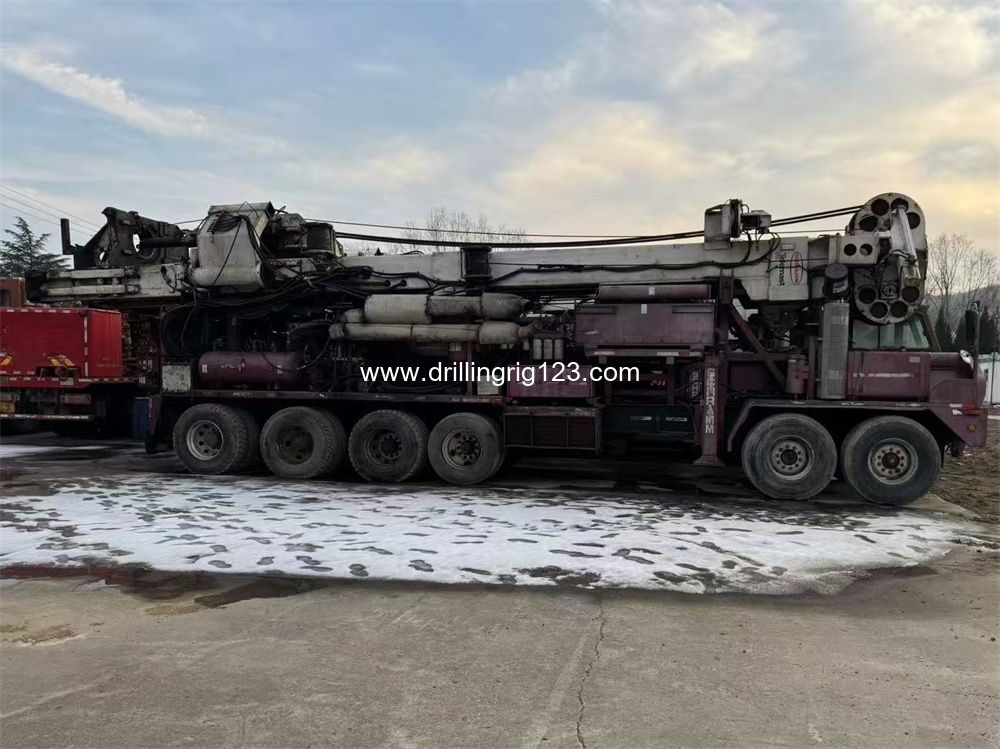

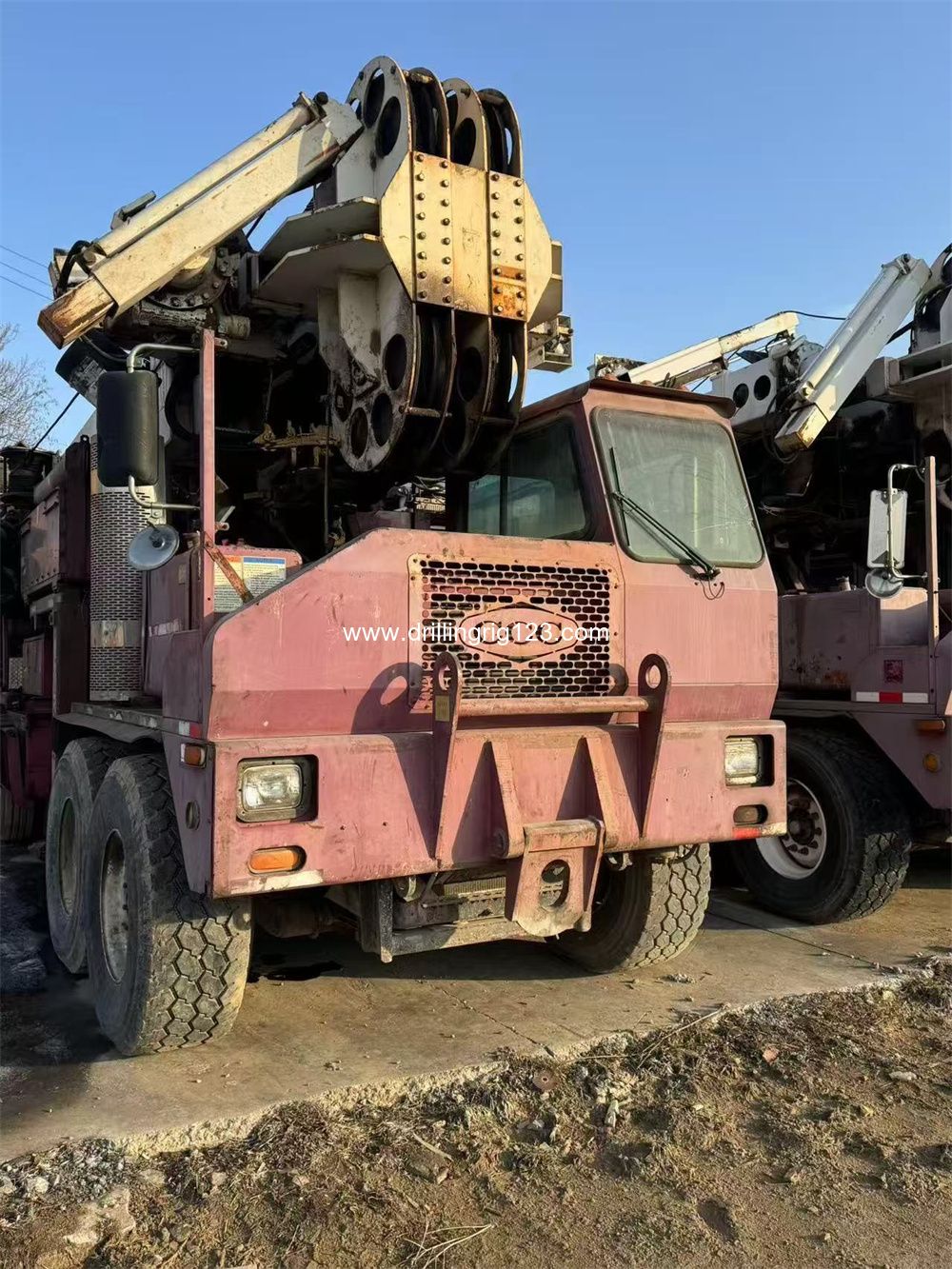

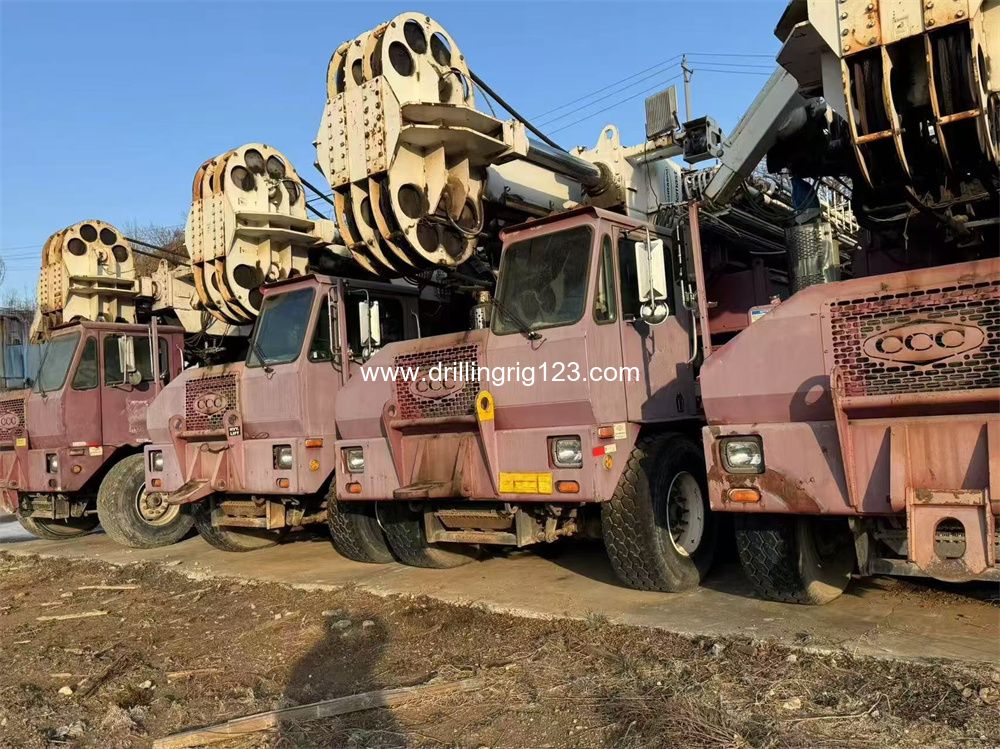

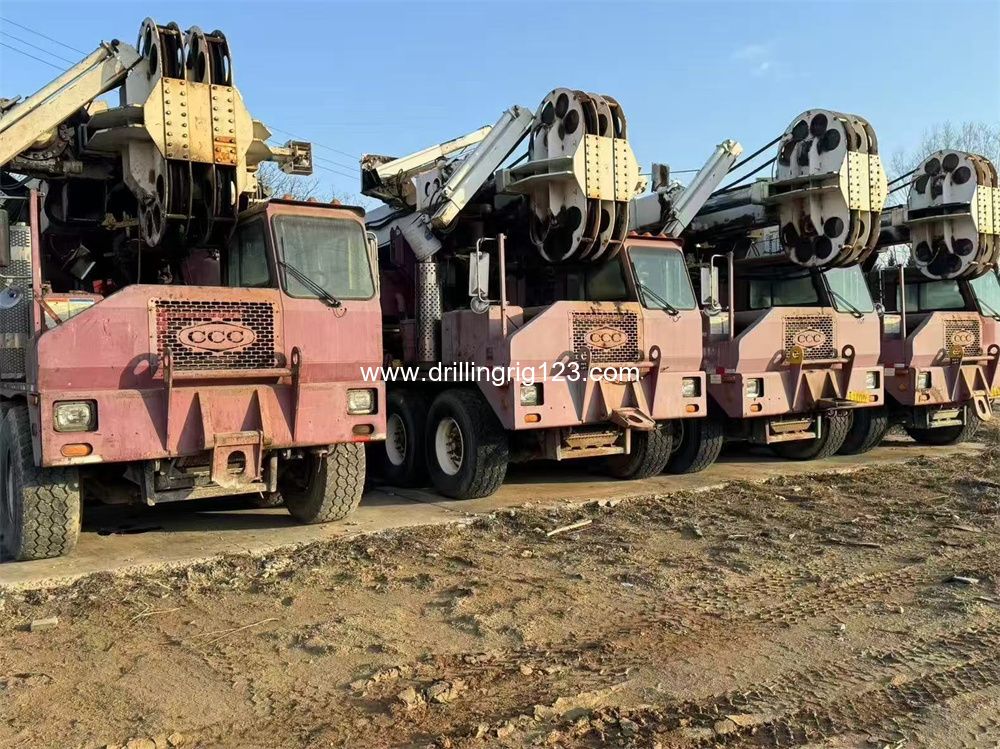

CARRIER .Dual Front-5 inch(127 mm)bore x36 inch(0.91 m)stroke

.CCC 12x6carrie .Dual Rear -5 inch (127 mm)bore x41 inch(1.04 m)stroke

.Wheel base 25ft(7.6M)

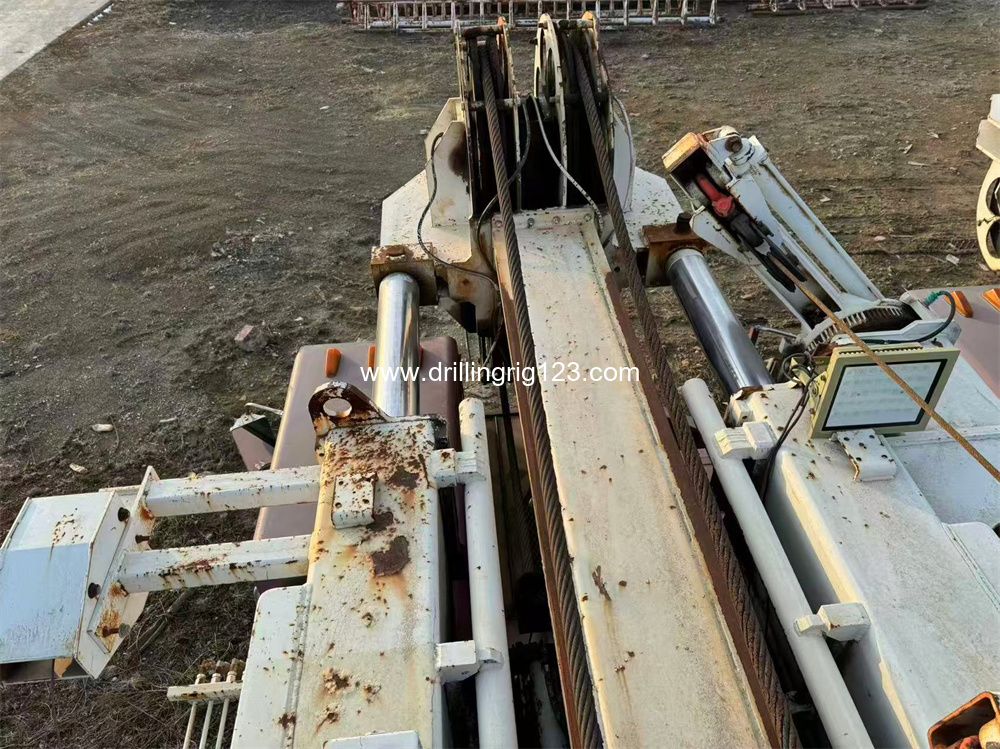

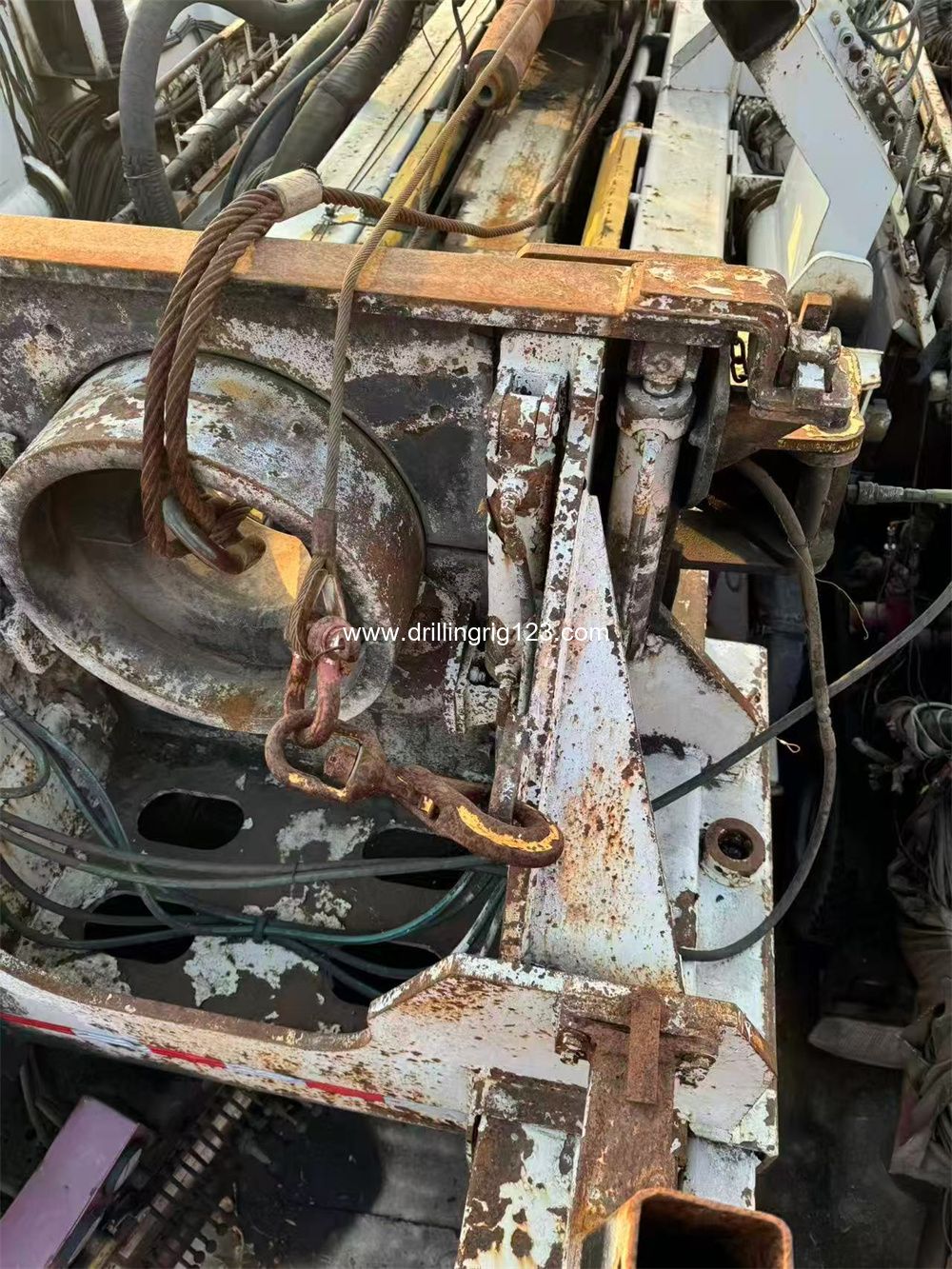

.Cummins engine rated 420hp@1,900rpm WINCH

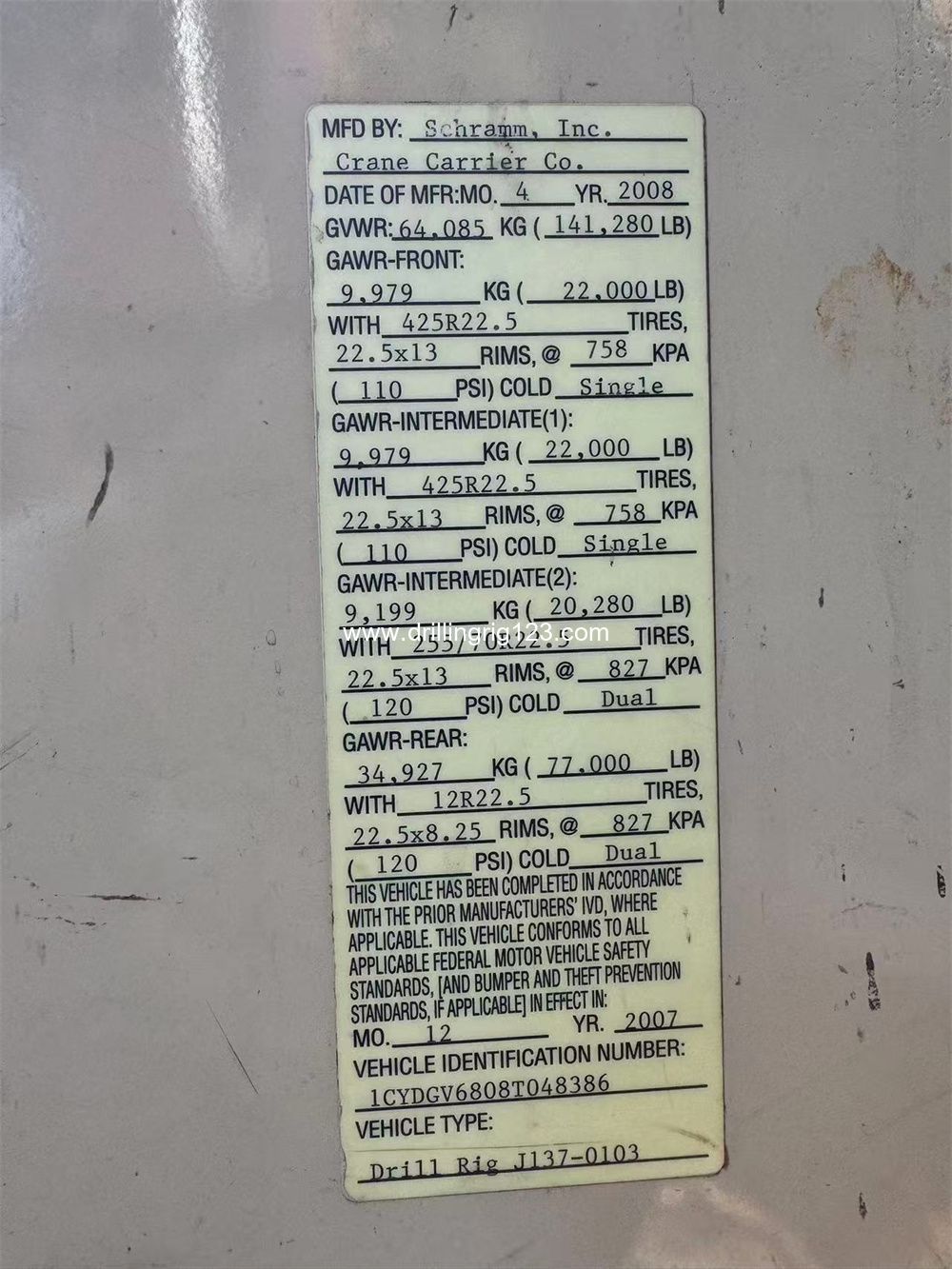

44,000lb(19.955 kg)front axle Planetary design with spring applied hydraulic release brake

.23,000 lb(10,433 kg) pusher axle 9,600 lbf(42.7 kN) bare drum line pull

.77.000 lb (34,927 kg) rear tridem 150 fpm(46 m/min) bare drum line speed

.142,500lb(64,637 kg)GVWR

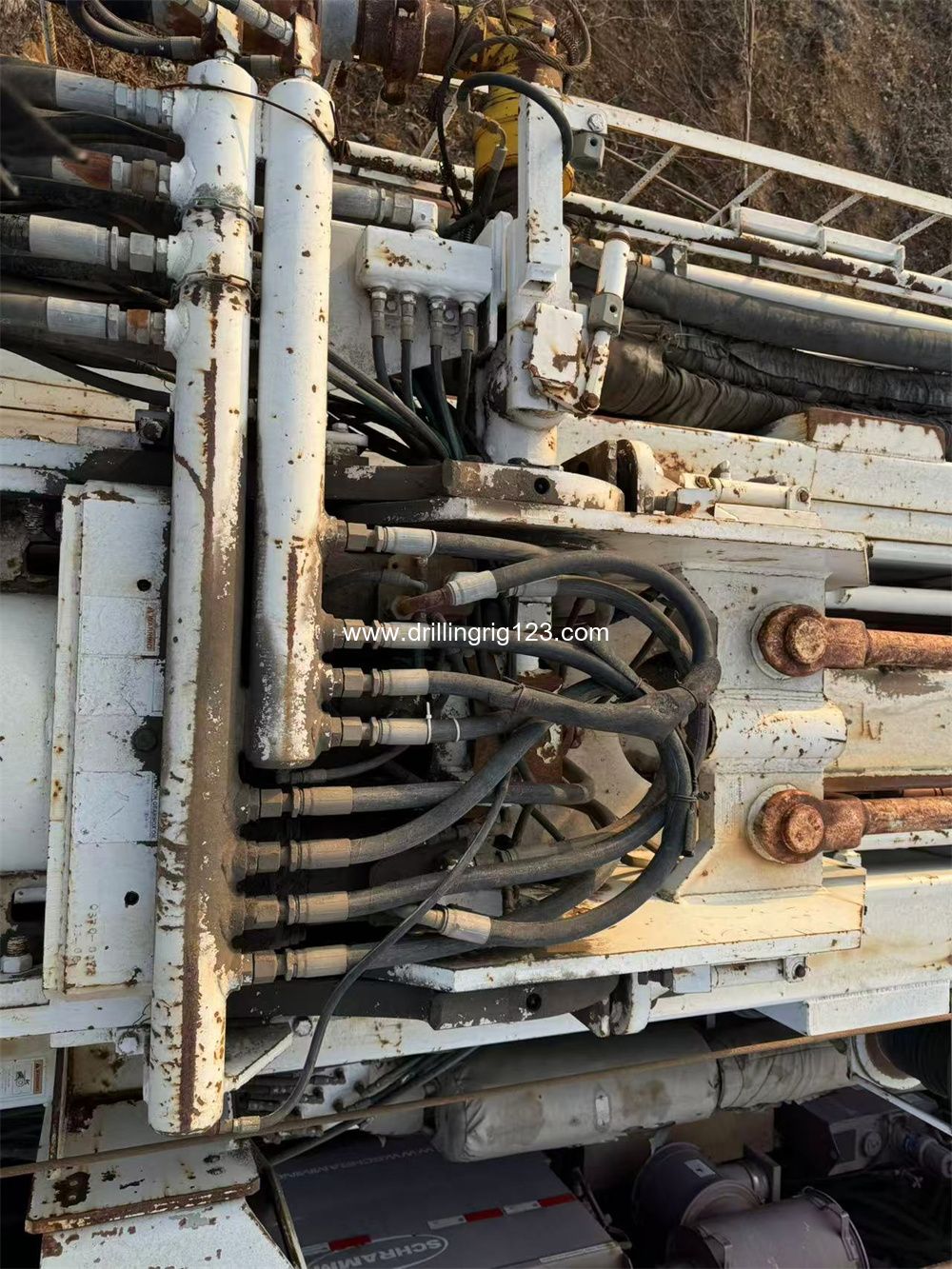

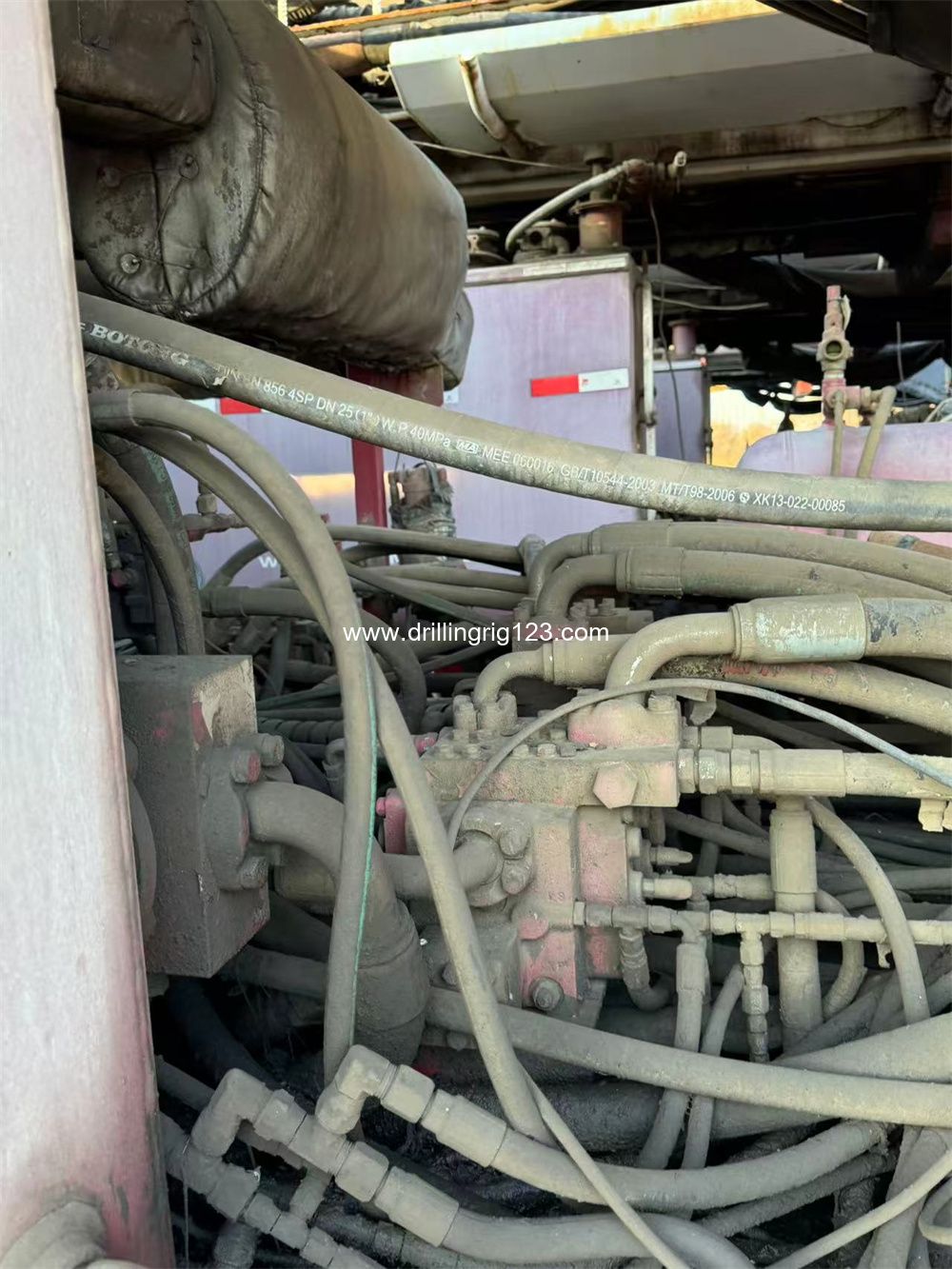

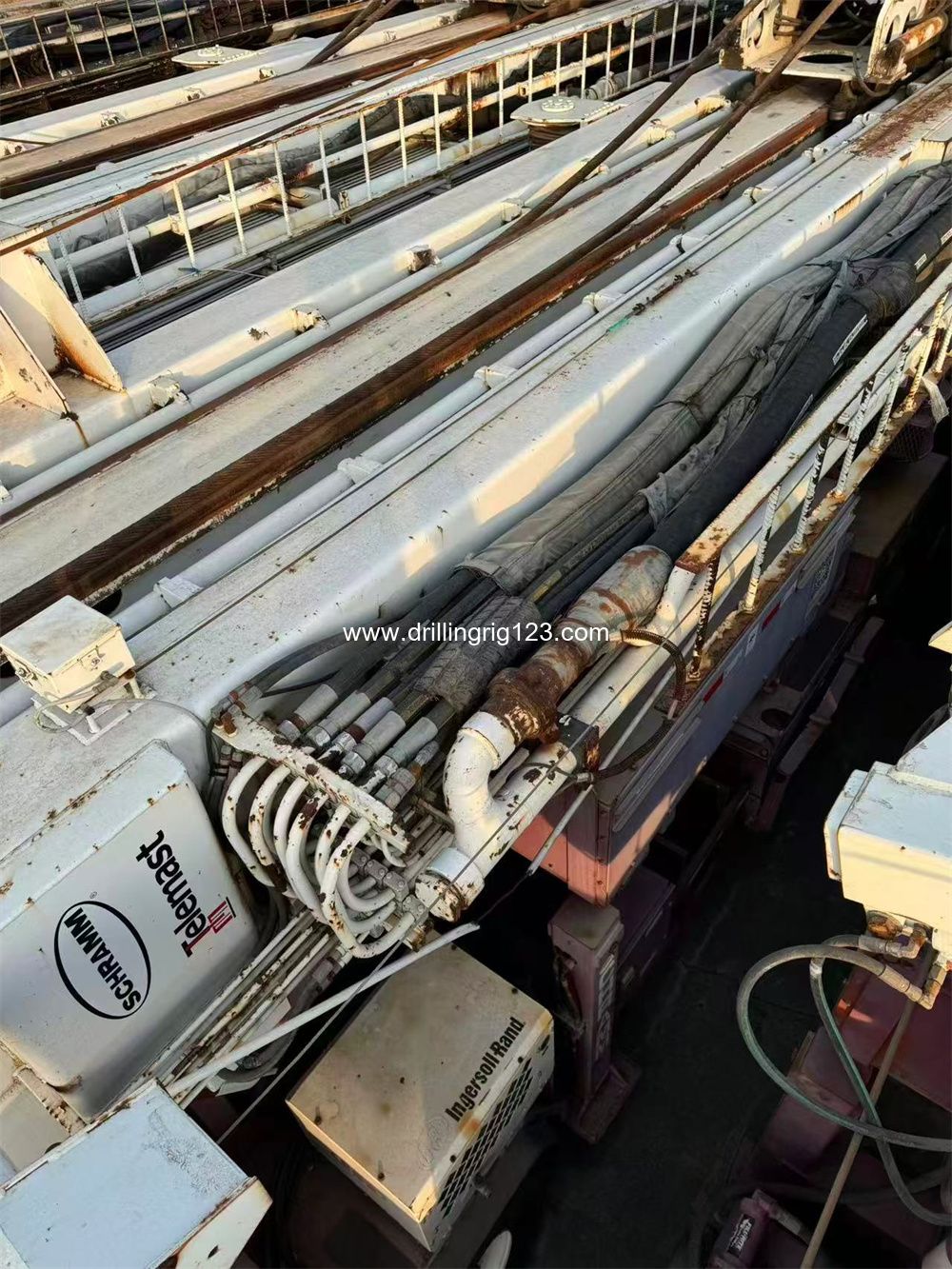

MAST HYDRAULIC SYSTEM Open loop load sensing system

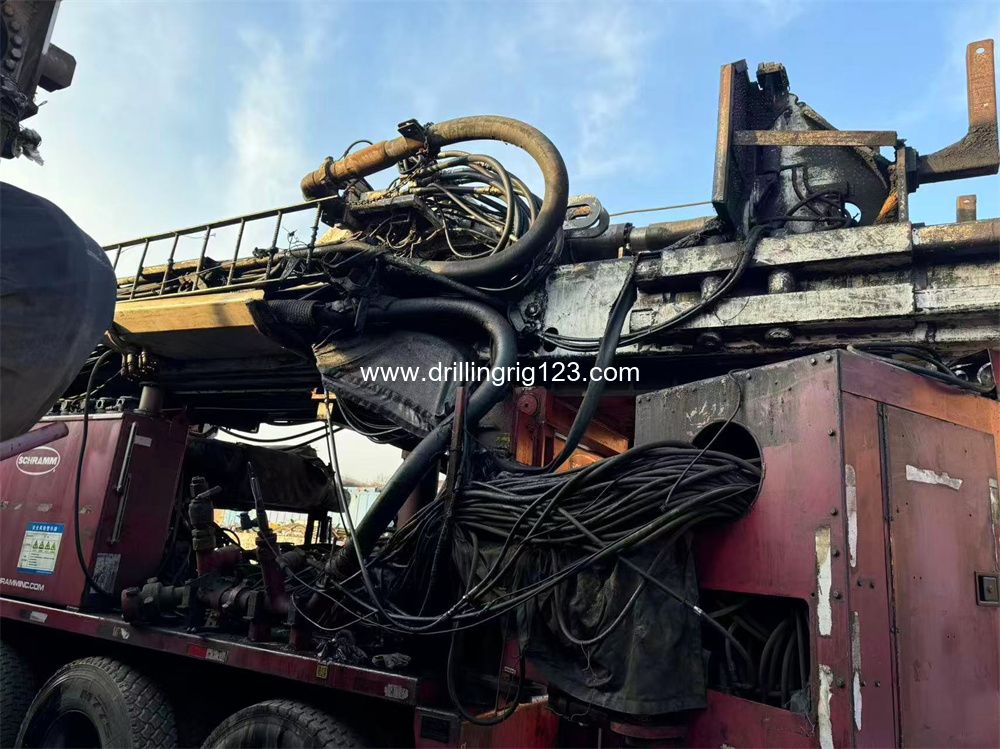

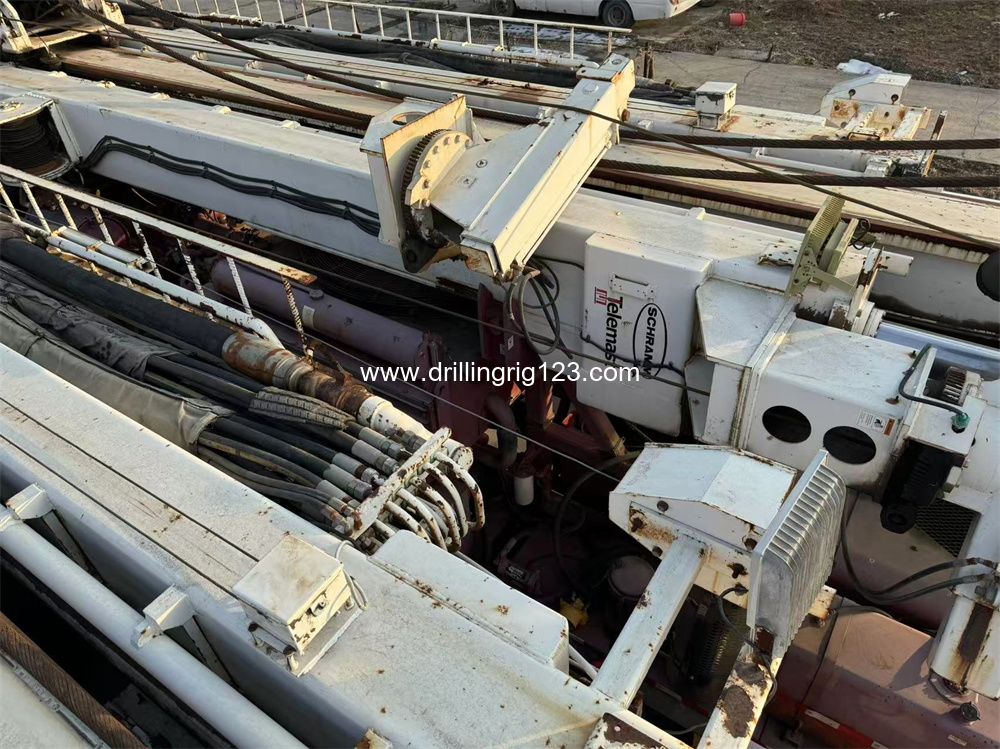

.Telescoping mast design permits long head travel and working 210 gallon (795 1) system capacity

.Free-standing mast design height,yet short overall length in transport position7 micron filtration

Hydraulically operated adjustable mast feet and slip box ELECTRICAL SYSTEM

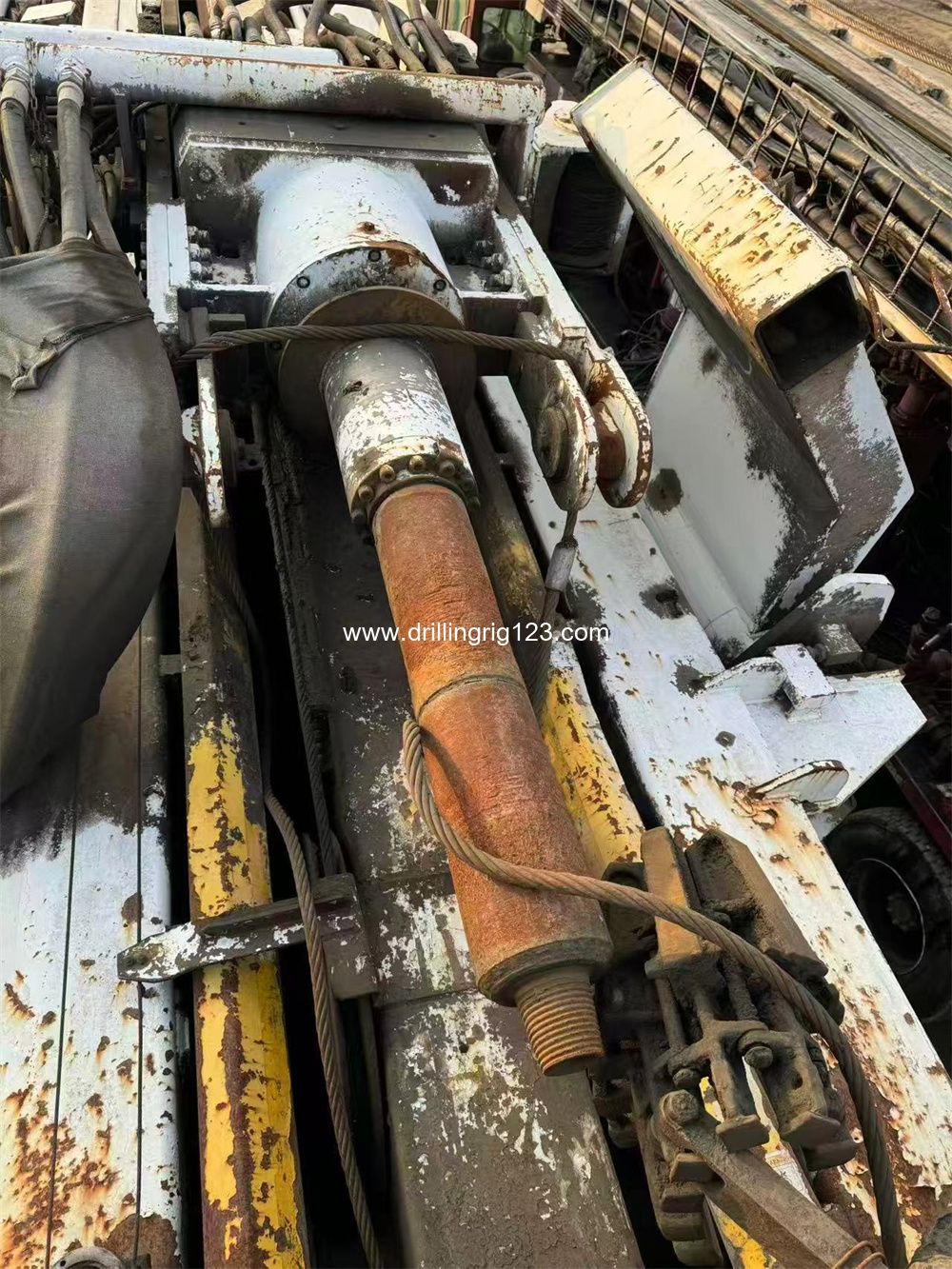

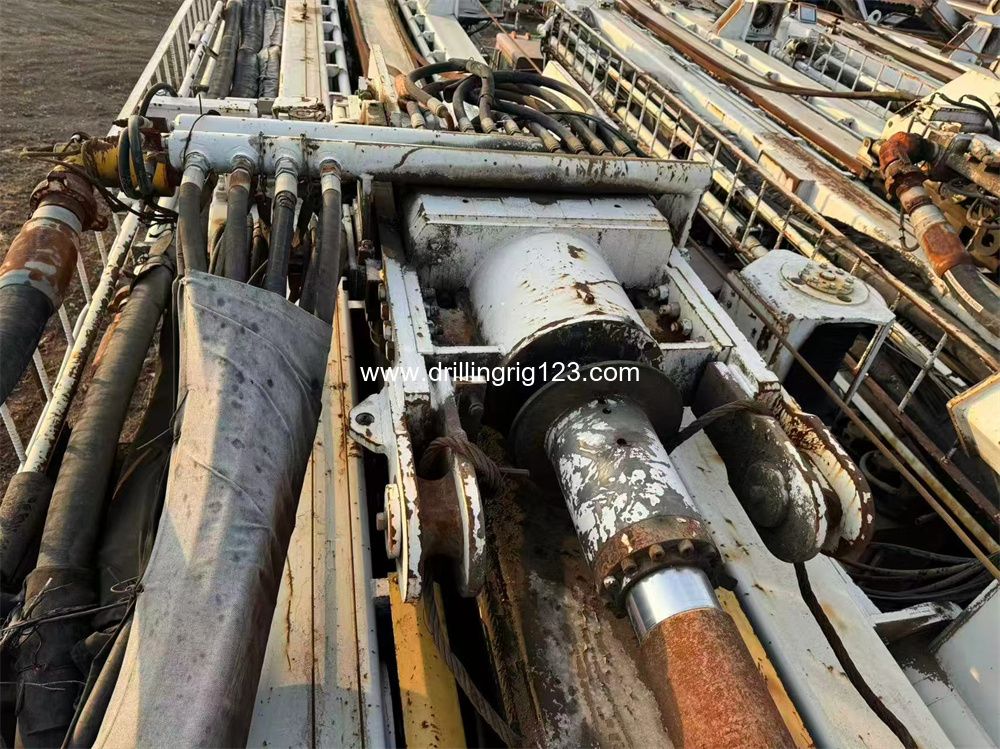

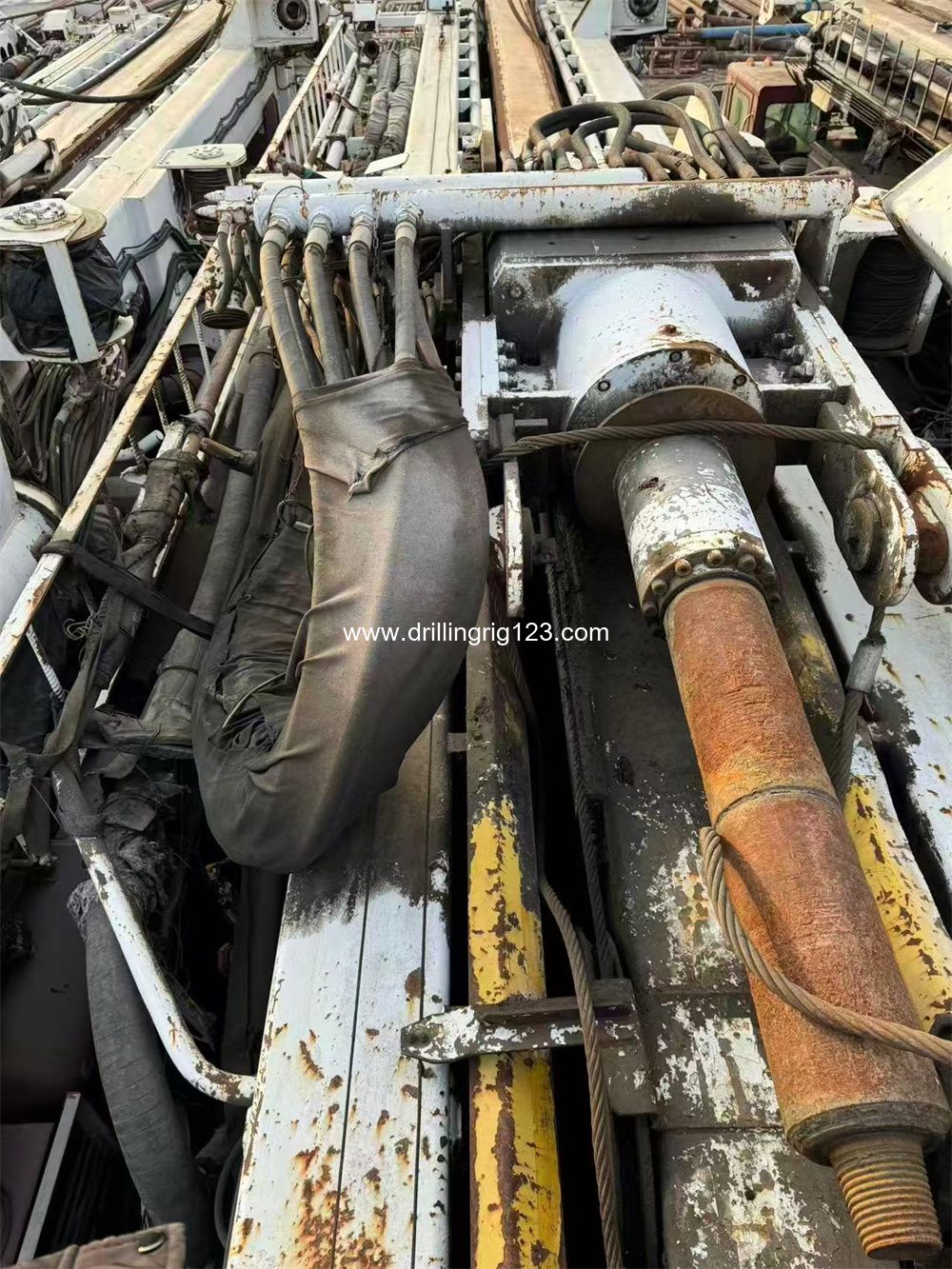

TOP HEAD DRIVE 24 volt DC electrical system

type hydraulic motors@7.670ft-lbs(10.399N-m).Infinitely variable rotation speed via HRC control.Heavy duty,single reduction gearbox with 4 two-speed disc valve.Torque:0-90RPM@17,750ft-Ibs(24,066 N-m).0-180RPM RIG WEIGHT AND DIMENSIONS OA width:9 ft 6 inches(2.9 m) OA length,transport:50 ft(15.2 m) Note:For general illustration only,varies with rig configuration

Rotation Speed:0-180 RPM Maximum operating pressure:3,000psi(208 bar) Typical:118,000 lbs(53,524 kg) OA height,transport:14 ft(4.27 m)

FEED SYSTEM.50ft(15.24 M) head travel.200,000 lbf(890 kN) pullback STANDARD ACCESSORIES50 hour maintenance kit Tool box,pipe handling sling,breakout wrench

.32,000lbf(142kN)pulldown.100 fpm(30.5 m/min) pullback speed OPTIONAL EQUIPMENT

.200fpm(61m/min)pulldown speed Tilting top head Torque options available to 25.130ft-lbs(34,072N-m)

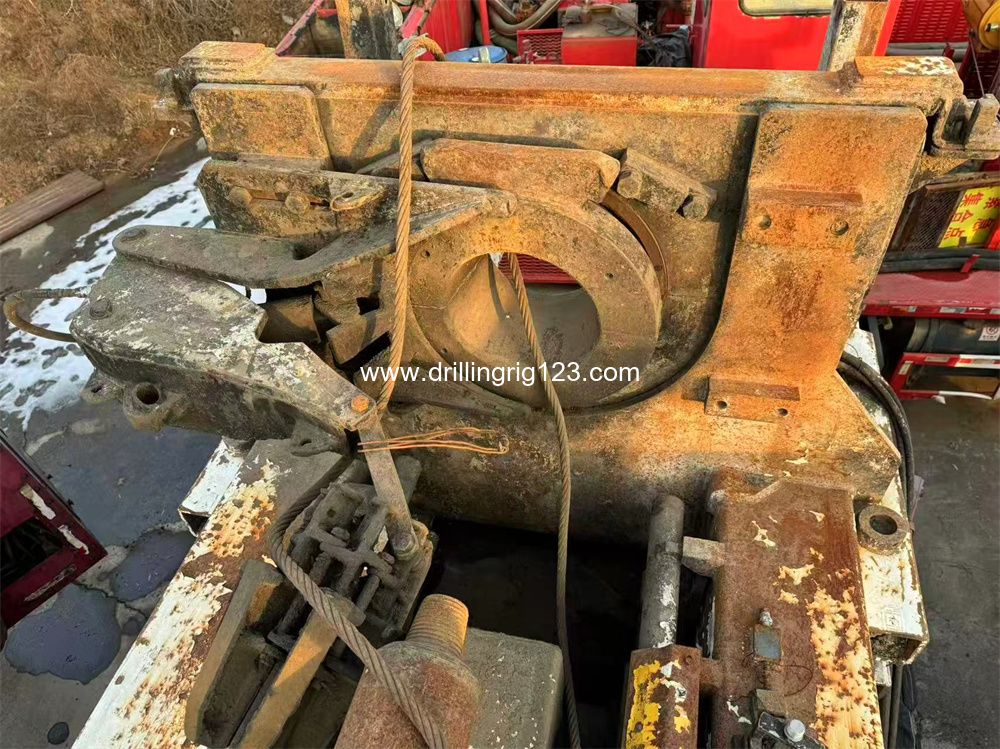

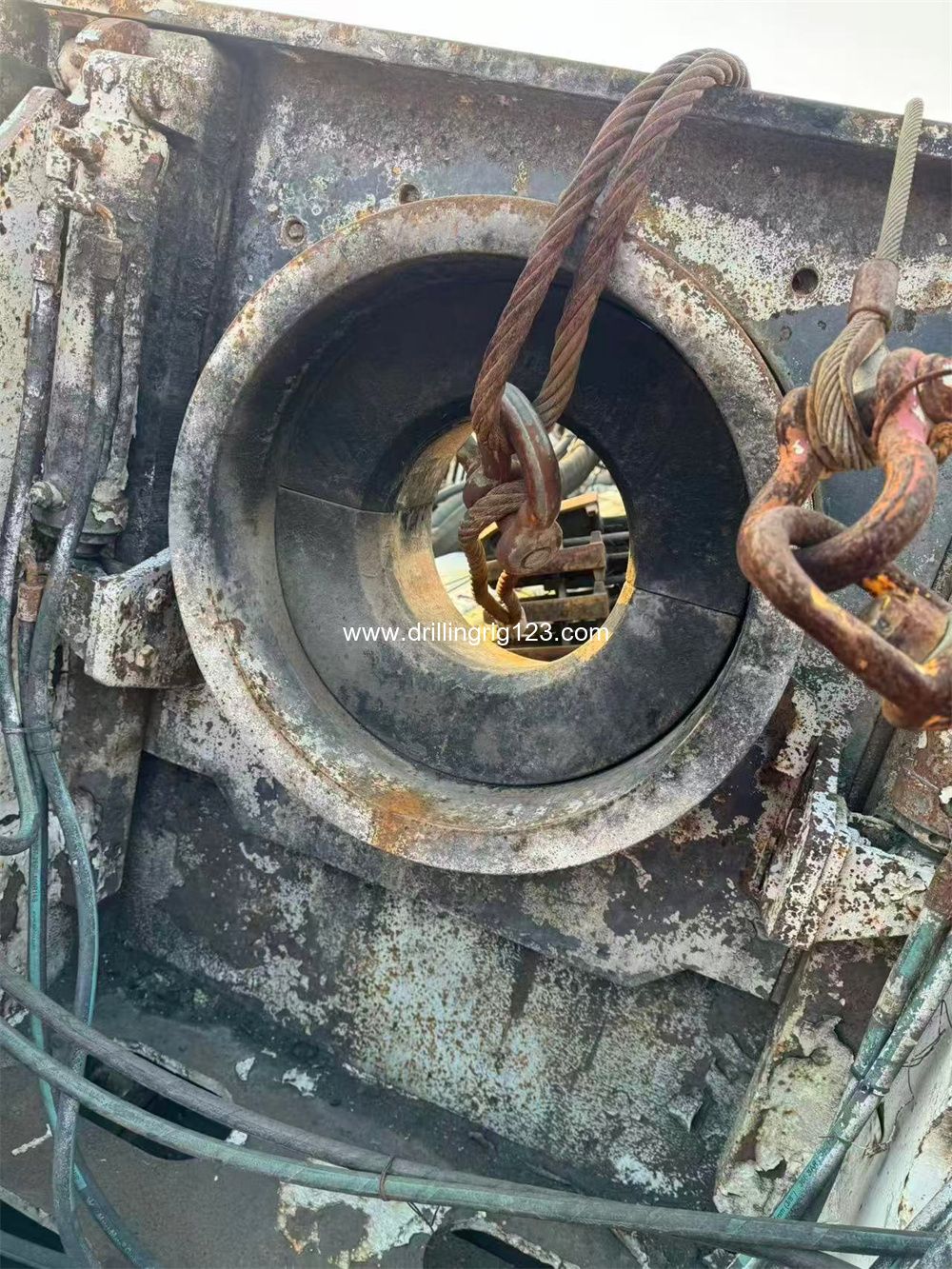

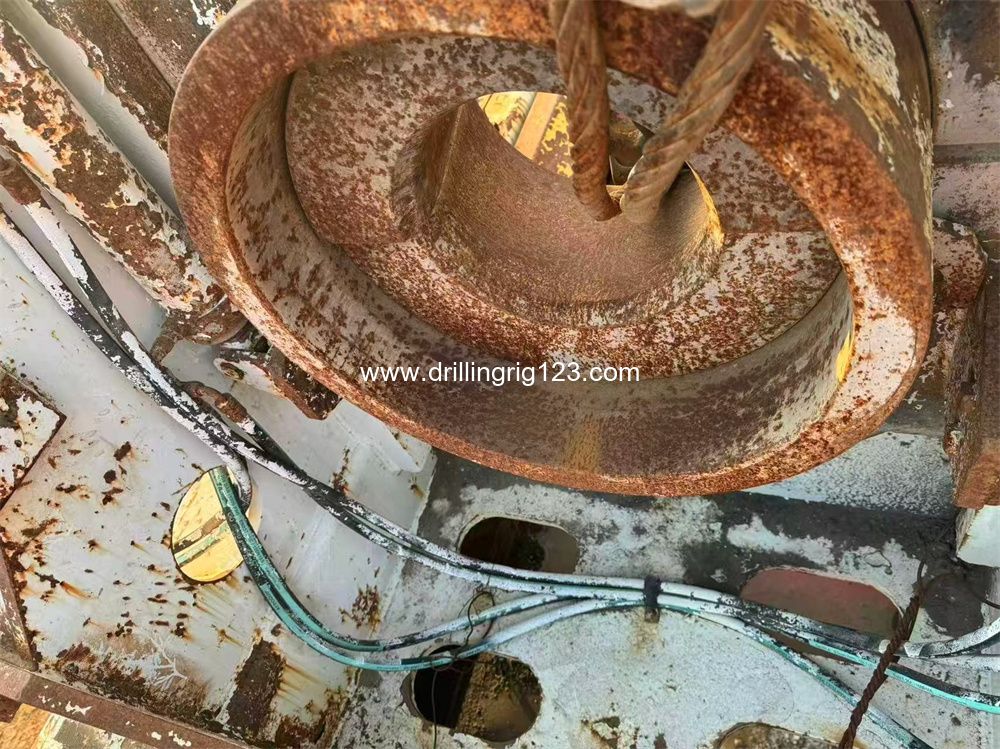

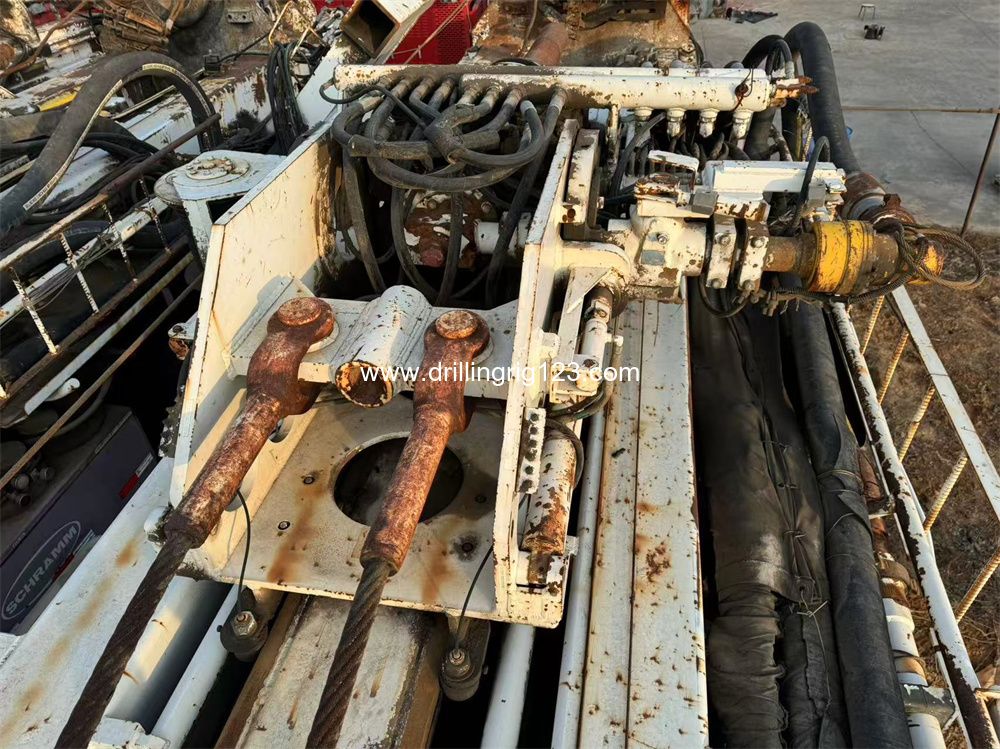

DRILL TABLE Rotation brake for directional drilling

Table Opening:30 inches(768 mm)diameter with table retracted LoadSafe" automated pipe handling system

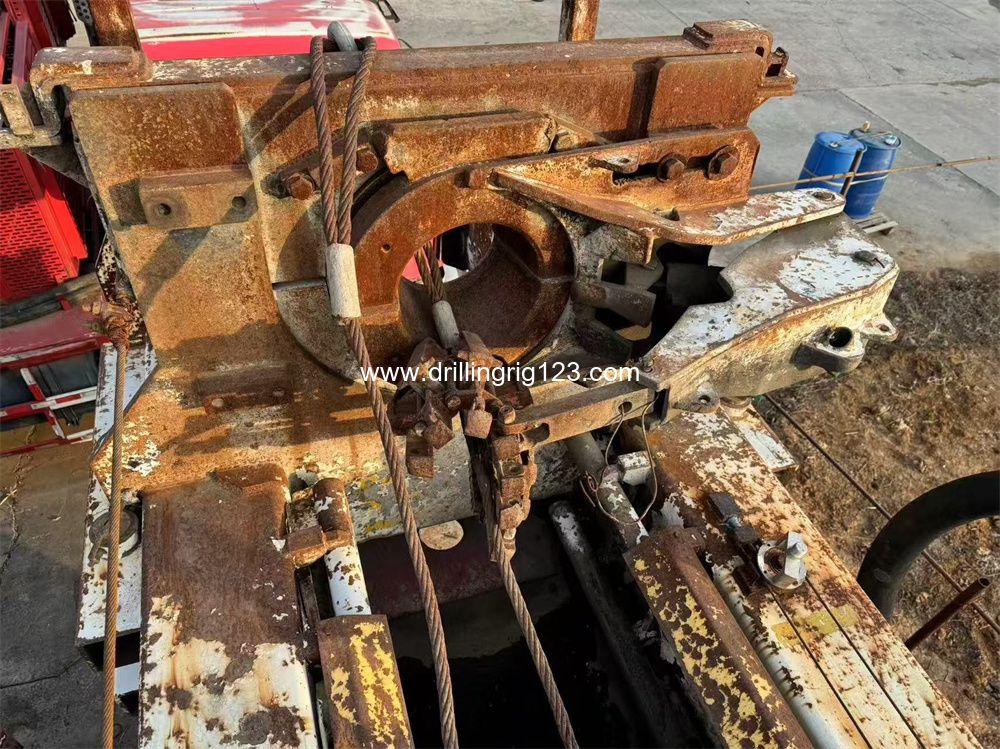

.Hydraulically retractable slip box Power breakout Single pipe loading arm

DRILL PIPE AND CASING.Range Ill tubular capability CE mark for European requirements See your Schramm representative for additional available options

.30.25 inch(768 mm) maximum diameter through the slip box

rt tcr tricatior ietio.o the machine's merchantability or fitness for a particular purpose.

SCHRAMM
