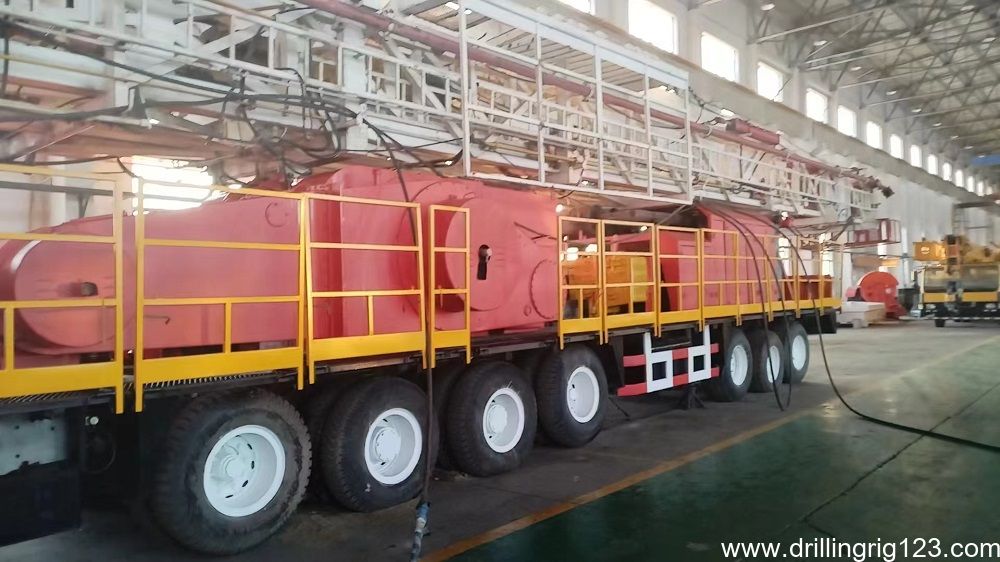

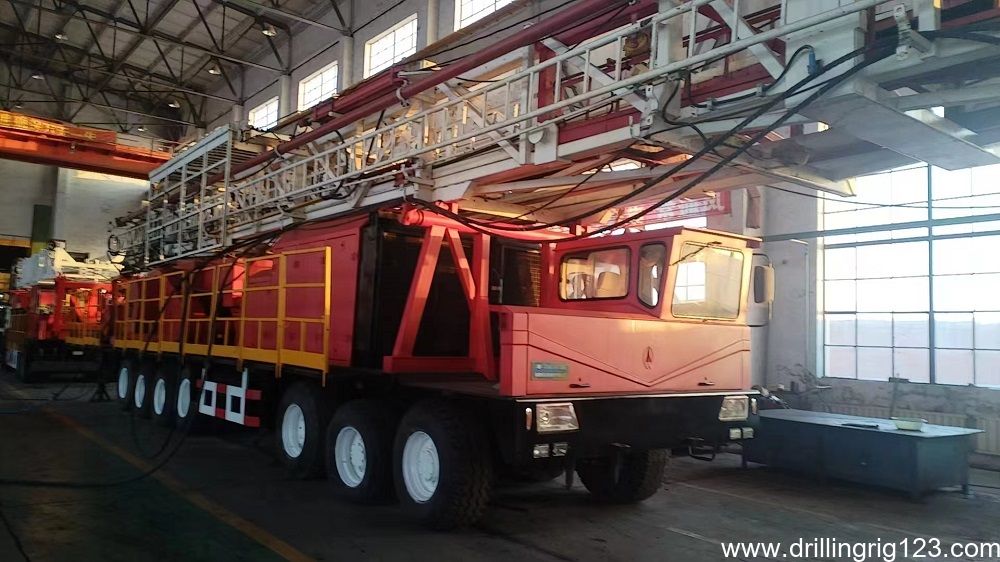

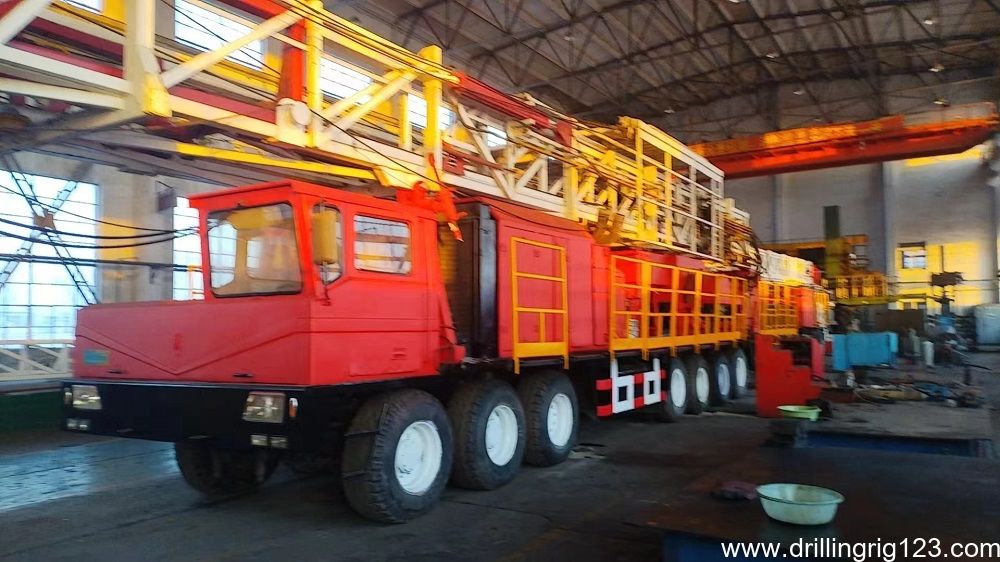

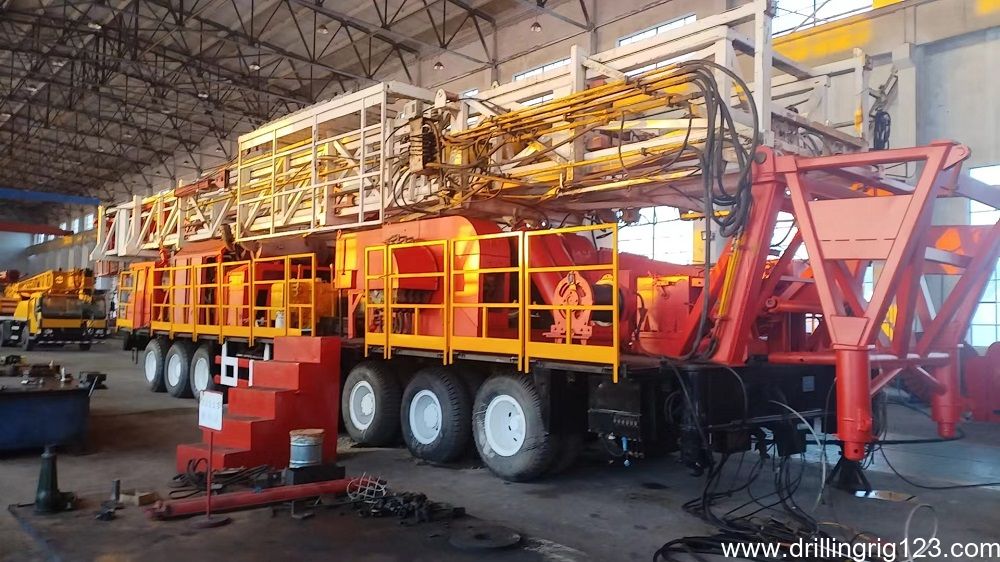

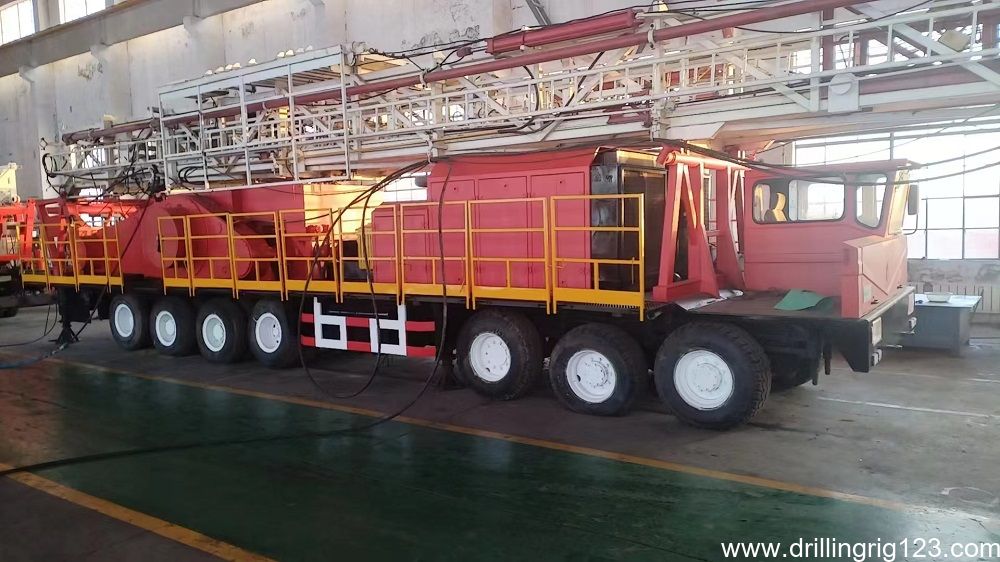

ZJ30/1700CZ truck-mounted drilling rig is a mechanically driven drilling rig to meet the domestic oil and gas field exploration and development

And abroad to contract drilling requirements and design and development of drilling RIGS. The rig is powered by two CAT engines

The force is driven through the Angle transmission box and chain after the ALLISON torque converter and the gear box are combined

The dynamic winch rotates and completes the lifting and dropping of drill string and auxiliary work through the moving system; Winch output chain

Drive the turntable transmission box, through the drive shaft to drive the climbing chain box, complete the rotating drill string work, also

Two roads provide power to the front and rear axles.

The truck mounted drill adopts the special chassis of the drill locomotive, and the driving speed is 14³8, which can adapt to normal track

Road driving and driving in muddy, snow, desert and other areas, can adapt to -20℃ ~ +55℃ environment

Homework.

The ZJ30/1700CZ trucking rig has a maximum drilling depth of 3000m (4 1/2" drill pipe) and is suitable for 3000

Oil, gas and water well drilling operations within meters. The overall design of the rig is based on oil and gas industry standards

SY/T5609 "Oil Drilling Rig type and Basic parameters" and other related standards, supporting parts meet the stone

Oil-specific standards and American API specifications can meet the requirements of drilling technology.
